Description

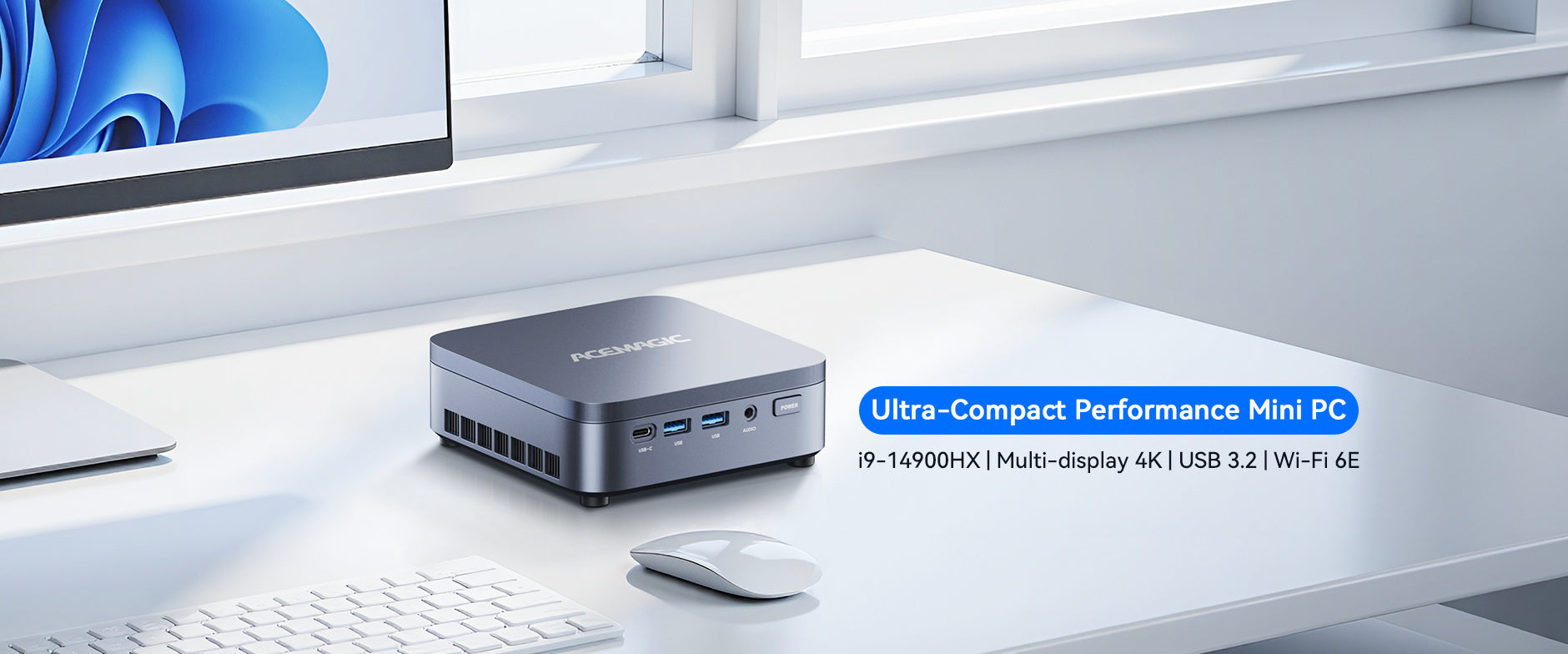

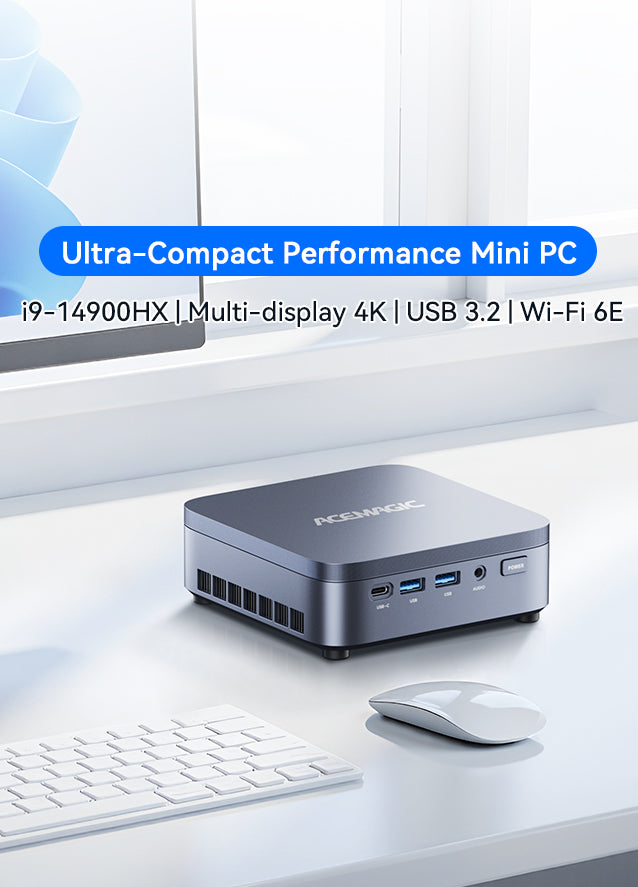

The ACEMAGIC Matrix Mini M5 is a high-performance mini PC equipped with an Intel® Core™ i9-14900HX processor. With 32 GB of DDR4 RAM and a 1 TB SSD, it is ideal for work. It supports 4K@60Hz triple display output, is compatible with WiFi 6E, and runs on Windows 11 Pro.

14500HX
Processor Intel® Core™ i5-14500HX Processor, 14 Cores (6P+8E) / 20 Threads, Intel 7 (10 nm) process, 24MB Intel® Smart Cache, Base Frequency: 2.6 GHz, Turbo Frequency up to 4.9 GHz
Graphics Card Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum Dynamic Frequency: 1.55 GHz, Execution Units: 32)

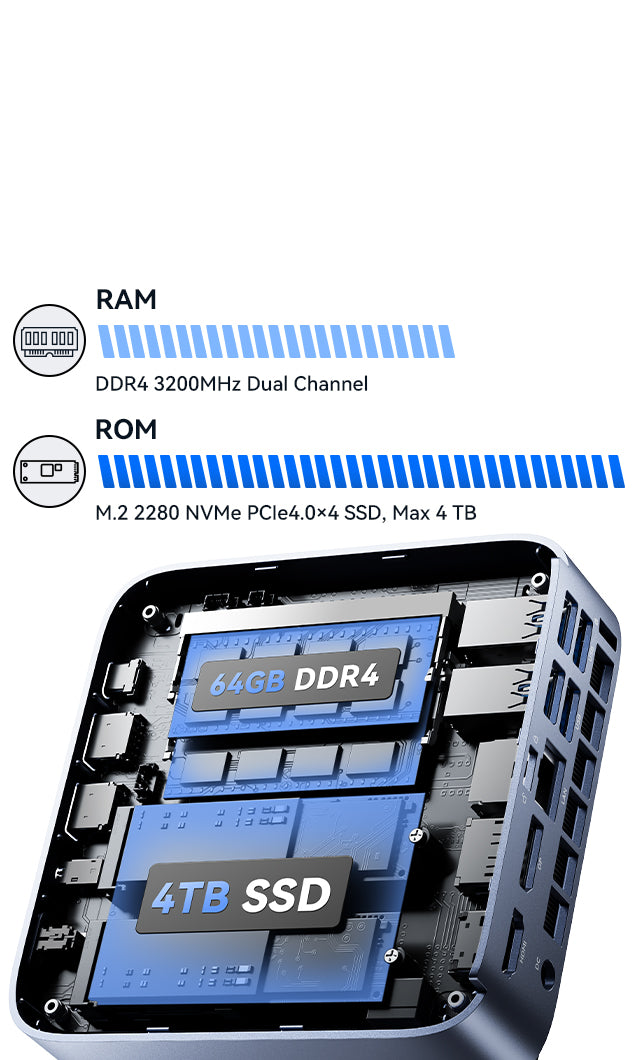

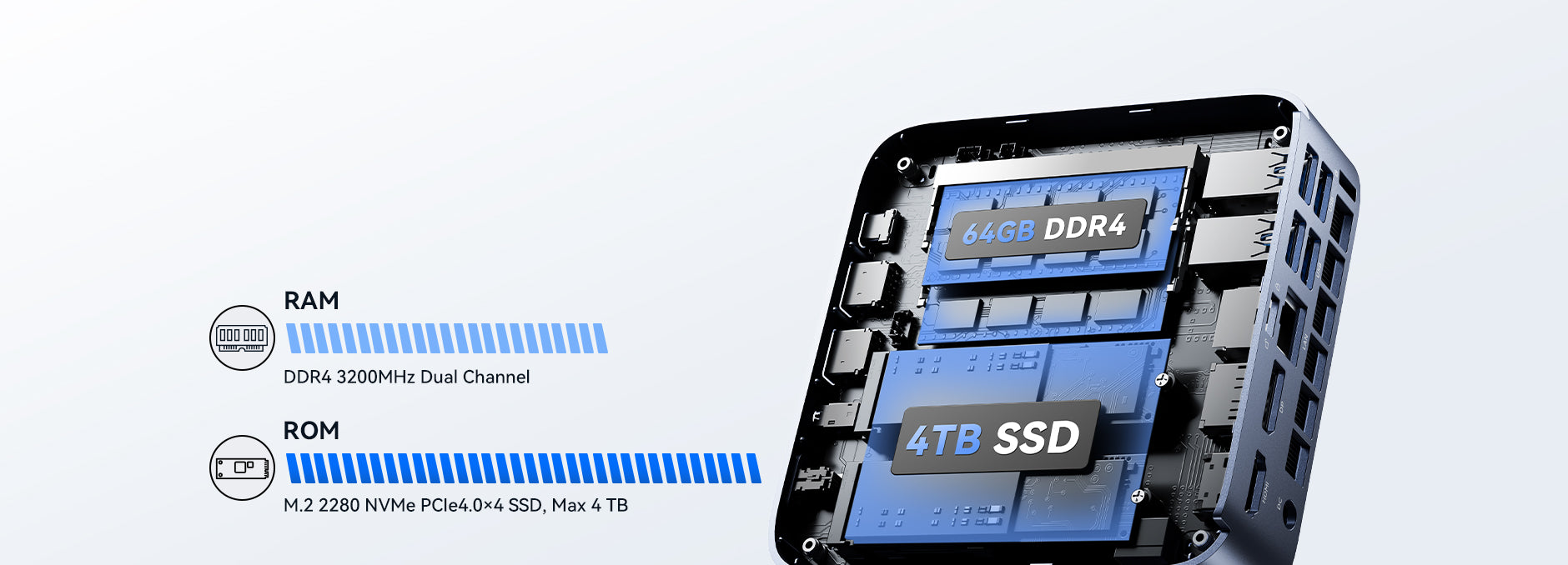

RAM 16GB (1x16GB) or 32GB (2x16GB) DDR4 3200MT/s (SO-DIMM Slots ×2, up to 64GB, supports DDR4 3200MHz max frequency)
Storage Configuration 512GB or 1TB M.2 2280 NVMe PCIe4.0×4 SSD, additional M.2 2280 NVMe PCIe3.0×4 Slot ×1 (up to 2TB per slot, total 4TB)
Wireless Connectivity WiFi 6 + BT 5.2 (M.2 2230)
Video Output HDMI 2.0 ×1 (4K@60Hz)
USB3.2 Gen2 Type-C ×1 (10Gbps data transfer, DP 1.4 [4K@60Hz], PD 15W)
DP 1.4b ×1 (4K@60Hz)
Audio Output HDMI 2.0 ×1
USB 3.2 Gen2 Type-C ×1
DP 1.4 ×1
3.5mm Audio Jack ×1

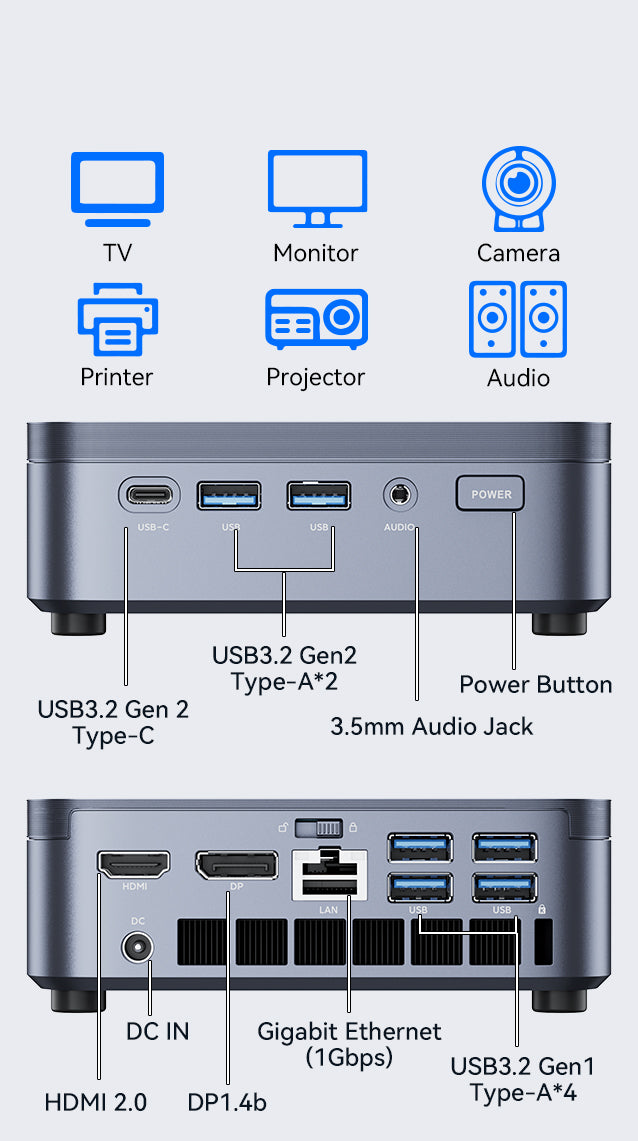

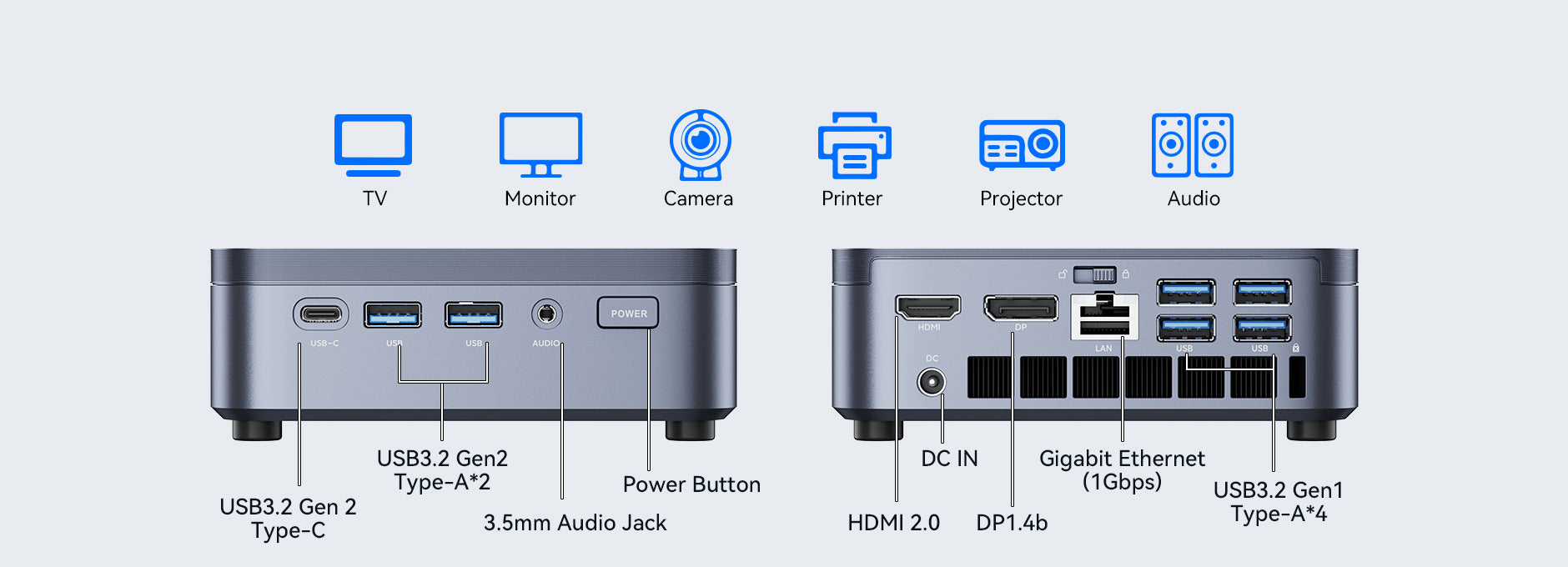

Ports & Buttons 10/100/1000Mbps Adaptive RJ45 Gigabit Ethernet ×1
USB 3.2 Gen2 Type-A ×2 (10Gbps, front)
USB 3.2 Gen1 Type-A ×4 (5Gbps, rear)
USB 3.2 Gen2 Type-C ×1 (10Gbps, DP 1.4 [4K@60Hz], PD 15W)
DC IN ×1
HDMI 2.0 ×1
DP 1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Power DC 19V/6.32A, 5.5×2.1mm DC Connector
System Windows 11 Pro
Dimensions 128 × 128 × 41.3 mm
14650HX
Processor Intel® Core™ i7-14650HX Processor, 16 (8P+8E) Cores / 24 Threads, Intel 7 process, 30MB Intel® Smart Cache, Base Frequency: 2.2 GHz, Turbo Frequency up to 5.2 GHz
Graphics Card Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum Dynamic Frequency: 1.6 GHz, Execution Units: 16)
RAM 32GB (2x16GB) DDR4 3200MHz Dual Channel (DDR4 SO-DIMM Slot ×2, up to 64GB, supports DDR4 3200MHz max frequency)
Storage Configuration 1TB M.2 2280 NVMe PCIe4.0×4 SSD (1x M.2 2280 SATA&NVMe PCIe3.0×4 Slot, 1x M.2 2280 NVMe PCIe4.0×4 Slot; supports up to 2TB per slot, total 4TB)
Wireless Connectivity WiFi 6E + BT 5.2 (M.2 2230)
Video Output HDMI 2.0 ×1 (4K@60Hz)
USB3.2 Gen2 Type-C ×1 (10Gbps data transfer, DP 1.4 [4K@60Hz], PD 15W)
DP 1.4 ×1 (4K@60Hz)
Audio Output HDMI 2.0 ×1
USB 3.2 Gen2 Type-C ×1
DP 1.4 ×1
3.5mm Audio Jack ×1
Ports & Buttons 10/100/1000Mbps Adaptive RJ45 Gigabit Ethernet ×1
USB 3.2 Gen2 Type-A ×2 (10Gbps, front)
USB 3.2 Gen1 Type-A ×4 (5Gbps, rear)
USB 3.2 Gen2 Type-C ×1 (10Gbps, DP 1.4 [4K@60Hz], PD 15W)
DC IN ×1
HDMI 2.0 ×1
DP 1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Power DC 19V/6.32A, 5.5×2.1mm DC Connector
System Windows 11 Pro
Dimensions 128 × 128 × 41.3 mm
14900HX

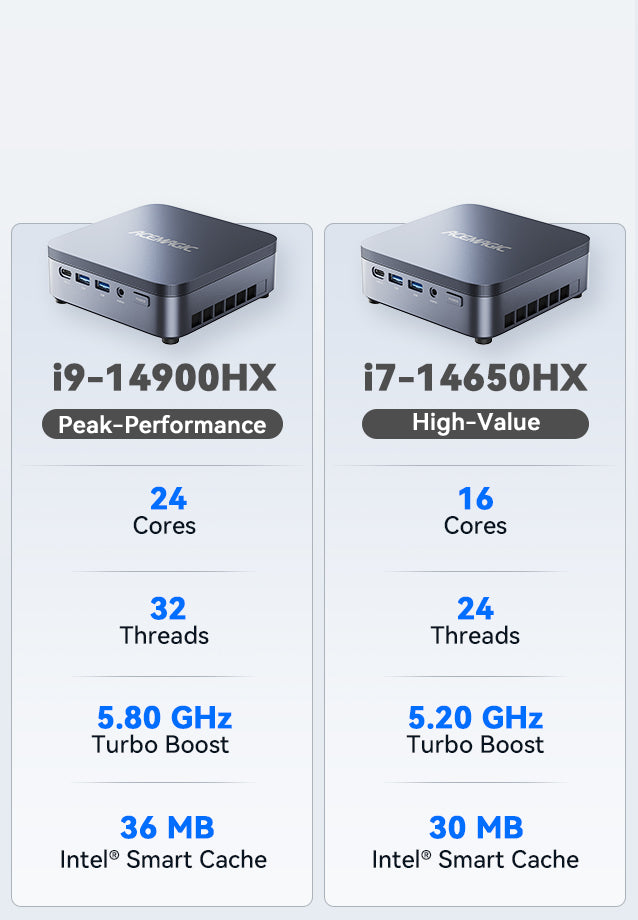

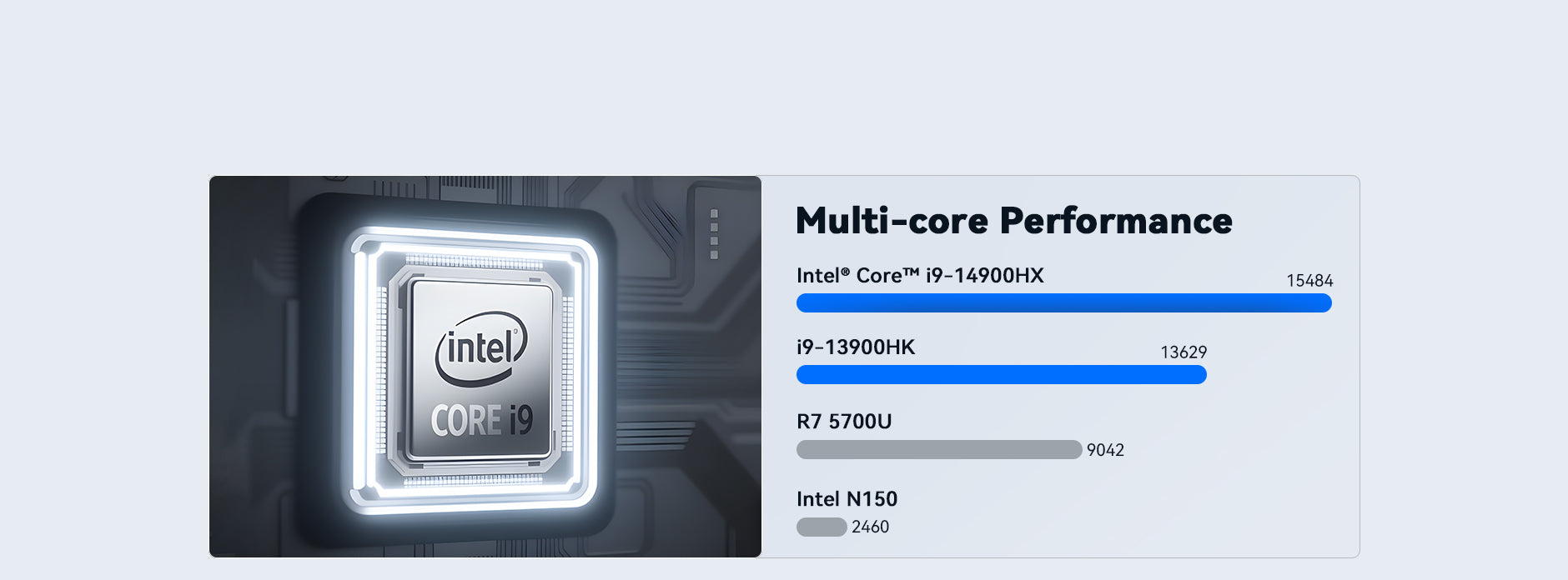

Processor Intel® Core™ i9-14900HX Processor, 24 (8P+16E) Cores / 32 Threads, Intel 7 process, 36MB Intel® Smart Cache, Base Frequency: 2.2 GHz, Turbo Frequency up to 5.8 GHz
Graphics Card Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum Dynamic Frequency: 1.65 GHz, Execution Units: 32)
RAM 32GB (2x16GB) DDR4 3200MHz Dual Channel (DDR4 SO-DIMM Slot ×2, up to 64GB, supports DDR4 3200MHz max frequency)
Storage Configuration 1TB M.2 2280 NVMe PCIe4.0×4 SSD (1x M.2 2280 SATA&NVMe PCIe3.0×4 Slot, 1x M.2 2280 NVMe PCIe4.0×4 Slot; supports up to 2TB per slot, total 4TB)
Wireless Connectivity WiFi 6E + BT 5.2 (M.2 2230)
Video Output HDMI 2.0 ×1 (4K@60Hz)
USB3.2 Gen2 Type-C ×1 (10Gbps data transfer, DP 1.4 [4K@60Hz], PD 15W)
DP 1.4 ×1 (4K@60Hz)
Audio Output HDMI 2.0 ×1
USB 3.2 Gen2 Type-C ×1
DP 1.4 ×1
3.5mm Audio Jack ×1
Ports & Buttons 10/100/1000Mbps Adaptive RJ45 Gigabit Ethernet ×1
USB 3.2 Gen2 Type-A ×2 (10Gbps, front)
USB 3.2 Gen1 Type-A ×4 (5Gbps, rear)
USB 3.2 Gen2 Type-C ×1 (10Gbps, DP 1.4 [4K@60Hz], PD 15W)
DC IN ×1
HDMI 2.0 ×1
DP 1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Power DC 19V/6.32A, 5.5×2.1mm DC Connector
System Windows 11 Pro
Dimensions 128 × 128 × 41.3 mm
FAQ

M5 teardown video:

M5 teardown video-Link.
