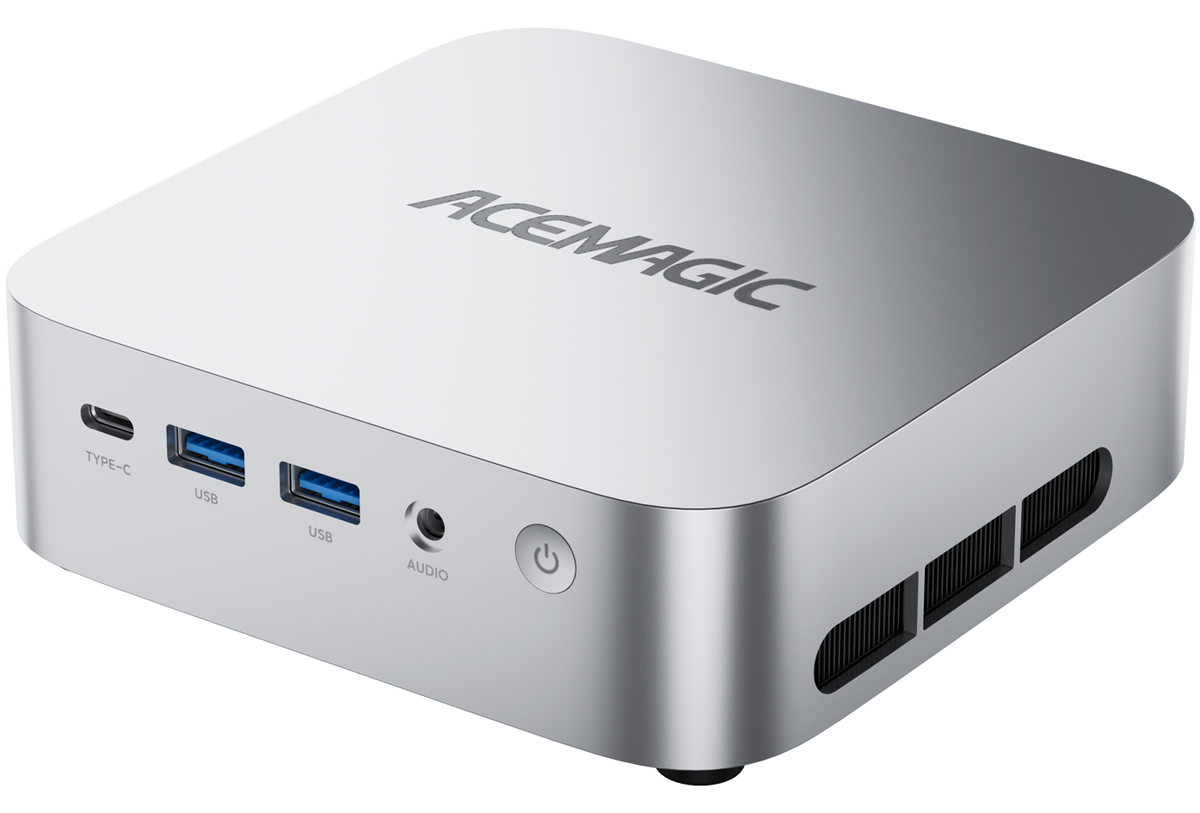

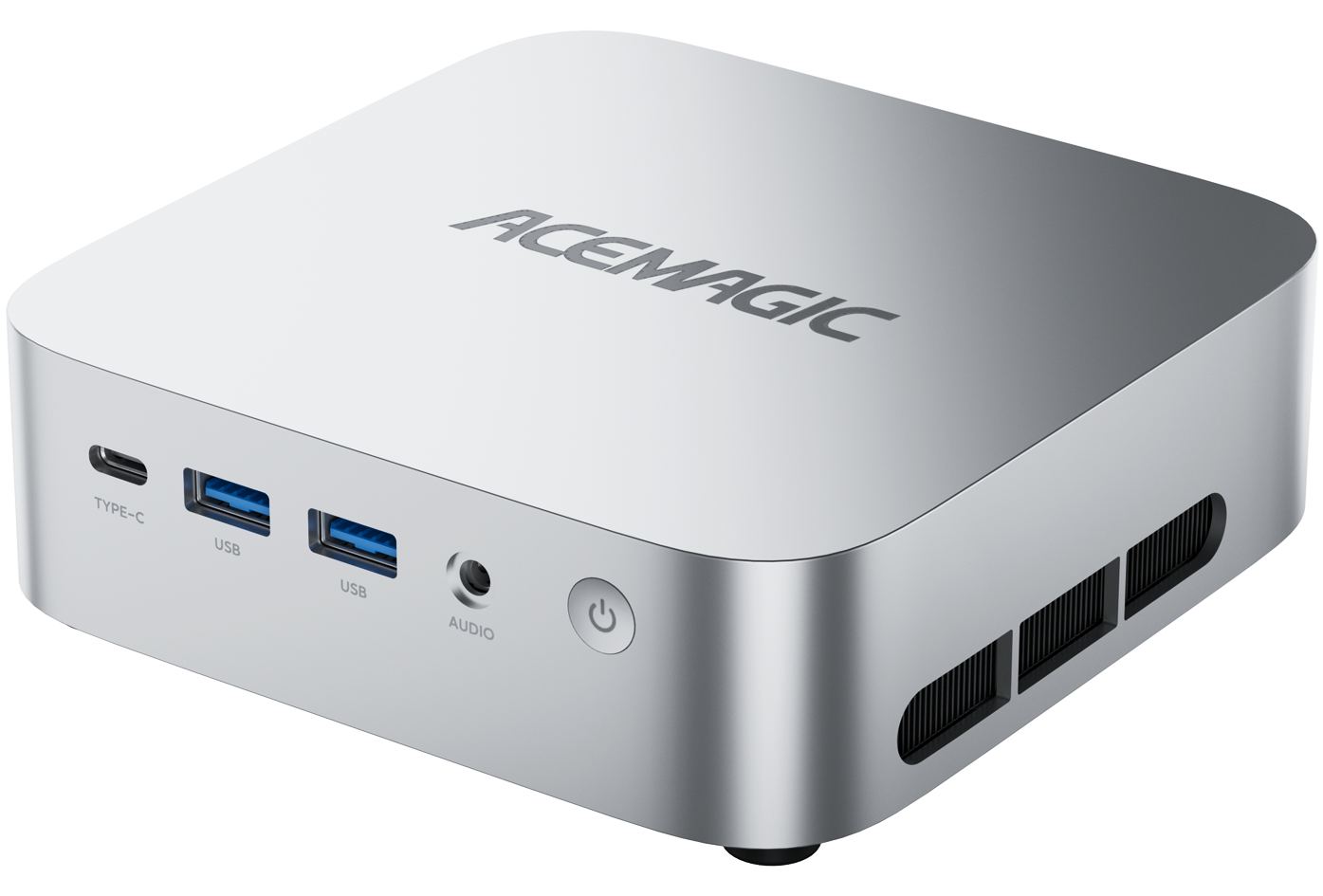

ACEMAGIC K1 Intel Core i5-12600H Mini PC
- 329,00 €
510,00 €- 329,00 €
- Unit price
- per
Save 181,00 €
Please hurry! Only 10 left in stock
- Intel® Core™ i5-12600H
- Maximum Performance: 45W
- 16GB RAM (DDR4 2666MHz) + 512GB SSD (M.2 2280 SATA)
- Triple 4K Displays
- WiFi 6, BT 5.2
- Windows 11 Pro
Shipping Guarantee
Warranty
| Processor | Intel® Core™ i5-12600H Processor, 12 Cores/16 Threads (Zen3 architecture, TSMC 7nm FinFET process, 16MB L3 Cache, Base frequency 3.3GHz, Turbo frequency up to 4.5GHz) |
| Graphics Card | Intel® Iris® Xe Graphics eligible (Graphics frequency: 1500MHz, Number of graphics cores: 7) |
| RAM | 16 GB DDR4 2666 MHz, DDR4 SO-DIMM Slots*2, up to 64 GB, support a maximum frequency of DDR4 3200 MHz |
| Storage Configuration | 512GB M.2 2280 SATA SSD, M.2 2280 Slot (NVMe/SATA) adaptive, up to 2TB, M.2 2280 Slot for SATA SSD, up to 2TB |
| Wireless Connectivity | WiFi 6, BT 5.2 |
| Video Output | HDMI 2.0*1 (4K@60Hz) USB 3.2 Gen 2 Type-C*1 (4K@60Hz) DP 1.4b*1 (4K@60Hz) |
| Audio Output | HDMI 2.0*1 USB 3.2 Gen 2 Type-C*1 DP 1.4b*1 3.5mm Audio Jack*1 |
| Ports & Buttons | 10 M/100 M/1000 M adaptive RJ45 Gigabit Ethernet*1 USB 3.2 Gen 2 Type-A*2 (Front) USB 3.2 Gen 1 Type-A*4 USB 3.2 Gen 2 Type-C*1 (supports DP 1.4, 4K@60Hz, PD output) DC Input Port*1 HDMI 2.0*1 (4K@60Hz) DP 1.4b*1 (4K@60Hz) 3.5mm Audio Jack*1 Power Button*1 |
| Power | 19V/3.42A, 5.5*2.1mm DC Input |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*41mm |
| Processor | AMD Ryzen™ 7 7730U Processor, 8 Cores / 16 Threads (Zen 3 architecture, TSMC 7nm process, 16MB L3 Cache, Base frequency 2.0GHz, Turbo frequency up to 4.5GHz) |
| Graphics Card | AMD Radeon™ Graphics (Graphics frequency: 2000MHz, Number of graphics cores: 8) |
| RAM | 16GB LPDDR4X 3733MT/s onboard memory (non-upgradable) |
| Storage Configuration | 512GB / 1TB M.2 2280 SATA SSD, dual M.2 2280 slots (SATA & PCIe supported) |
| Wireless Connectivity | WiFi 6 + Bluetooth 5.2 (M.2 2230) |
| Video Output | HDMI 2.0*1 (4K@60Hz) USB 3.2 Gen2 Type-C*1 (DP1.4, 4K@60Hz) DP1.4b*1 (4K@60Hz) |
| Audio Output | HDMI 2.0*1 USB 3.2 Gen2 Type-C*1 DP1.4b *1 3.5mm Audio Jack*1 |
| Ports & Buttons | 10/100/1000Mbps RJ45 Gigabit Ethernet*1 USB 3.2 Gen2 Type-A*2 (10Gbps, front) USB 3.2 Gen1 Type-A*4 (5Gbps, rear) USB 3.2 Gen2 Type-C*1 (DP1.4 + data transfer up to 10Gbps) DC Input*1 HDMI 2.0*1 DP1.4b*1 3.5mm Audio Jack*1 Power Button*1 |
| Power | 19 V/3.42 A, 5.5*2.1mm DC Input |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*41mm |
| Material | ABS + PC chassis with spray-coated finish, black shell with silver logo |
| Fan Size | 80mm x 10mm |
| Fan Speed | 2000+ RPM |
| Cooling Features | Large aluminum heatsink area, professional airflow structure, enhanced MOSFET and inductor cooling |
| Included | Main unit, manual, HDMI cable, bracket, screws, adapter |
| Processor | AMD Ryzen™ 5 7430U Processor, 6 Cores/12 Threads (Zen3 Architecture, TSMC 7nm FinFET Process Technology, 16MB L3 Cache, Base Frequency 2.3GHz, Turbo Frequency up to 4.3GHz) |
| Graphics Card | AMD Radeon RX Vega 7 (Graphics Frequency: 1800MHz, Number of Graphics Cores: 7) |
| RAM | 16GB DDR4 2666MHz, 2× DDR4 SO-DIMM Slots, Up to 64GB, Supports Maximum Frequency of DDR4 3200MHz |
| Storage Configuration | 512GB M.2 2280 SATA SSD, M.2 2280 Slot (NVMe/SATA Adaptive), Up to 2TB, M.2 2280 Slot for SATA SSD, Up to 2TB |
| Wireless Connectivity | WiFi 6, BT 5.2 |
| Video Output | HDMI 2.0*1 (4K@60Hz) USB 3.2 Gen 2 Type-C*1 (4K@60Hz) DP 1.4b*1 (4K@60Hz) |
| Audio Output | HDMI 2.0*1 USB 3.2 Gen 2 Type-C*1 DP 1.4b*1 3.5mm Audio Jack*1 |
| Ports & Buttons | 10M/100M/1000M Adaptive RJ45 Gigabit Ethernet*1 USB 3.2 Gen 2 Type-A*2 (Front) USB 3.2 Gen 1 Type-A*4 USB 3.2 Gen 2 Type-C*1 (Supports DP 1.4, 4K@60Hz, PD Output) DC Input Jack*1 HDMI 2.0*1 (4K@60Hz) DP 1.4b*1 (4K@60Hz) 3.5mm Audio Jack*1 Power Button*1 |
| Power | 19V/3.42A, 5.5*2.1mm DC Connector |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*41mm |
How do I install the Wi-Fi/Bluetooth driver?
The driver download link:
How to replace or install the memory and SSD?
Kron Mini K1
Intel® Core™ i5-12600H
Intel® Iris® Xe Graphics eligible
Smooth performanceHigh-speed memory channel
Enhanced Cooling System
Triple 4K Display Support
High-Speed Wireless Connectivity
Compact Size, Space-Saving
Rich interfaces
What's in the box?
