ACEMAGIC K1 AMD Ryzen Mini PC

389,00 €
569,00 €
389,00 €
Save 180,00 €
Please hurry! Only 10 left in stock
CPU: Ryzen 7 5825U(Pre-sale:6/18)
TYPE: 16GB RAM + 512G SSD (Sliver)
Subtotal: 389,00 €

Shipping Guarantee

Shipped from Warehouse in Germany

Free Standard Shipping within Europe

Shipping Policy

Warranty

30-Day Hassle-Free Return Policy

2-Year Warranty

Lifetime Technical Support

Warranty Policy

ACEMAGIC K1 AMD Ryzen Mini PC

ACEMAGIC K1 AMD Ryzen Mini PC

569,00 € 389,00 €

ACEMAGIC K1 AMD Ryzen Mini PC

569,00 € 389,00 €
CPU: Ryzen 7 5825U(Pre-sale:6/18)
TYPE: 16GB RAM + 512G SSD (Sliver)
Processor AMD Ryzen Embedded R2544 Processor, 4 Cores/8 Threads (Zen+ architecture, 12nm process, 4 MB L3 Cache, Base frequency 3.35 GHz, Turbo frequency up to 3.7 GHz)
Graphics Card Radeon™ Vega 8 Graphics (Graphics frequency: 1300 MHz, Number of graphics cores: 8)
RAM 16 GB SO-DIMM DDR4 (up to 32 GB, maximum DDR4 frequency 3200 MT/s)
Storage Configuration 1TB M.2 2280 SATA SSD, up to 4TB with dual M.2 2280 slots (SATA & NVMe PCIe3.0×2 and PCIe3.0×4 slots)
Wireless Connectivity WiFi 5, BT 4.2 (M.2 2230)
Video Output HDMI 2.0*1 (4K@60Hz)
USB 3.2 Gen 1 Type-C*1 (4K@60Hz)
DP 1.4*1 (4K@60Hz)
Audio Output HDMI 2.0*1
USB 3.2 Gen 1 Type-C*1
DP 1.4*1
3.5mm Audio Jack*1

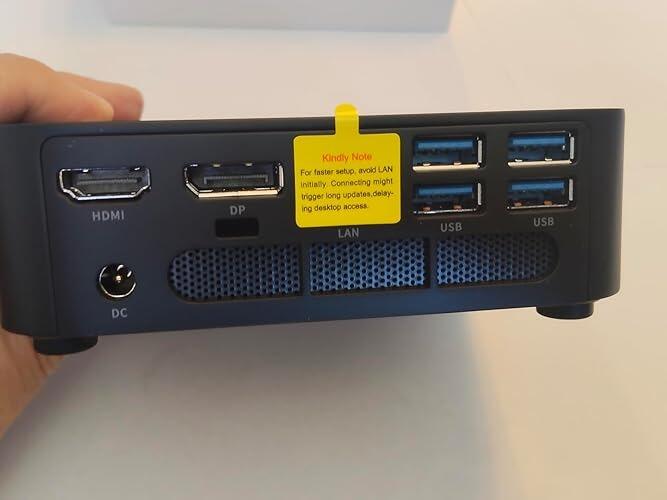

Ports & Buttons 10 M/100 M/1000 M adaptive RJ45 Gigabit Ethernet*1
USB 3.2 Gen 1 Type-A*6 (5Gbps, blue ports)
USB 3.2 Gen 1 Type-C*1 (Data + DP1.4 video output)
DC Input Port*1
HDMI 2.0*1 (4K@60Hz)
DP 1.4*1 (4K@60Hz)
3.5mm Audio Jack*1
Power Button*1
Power 19 V/3.42 A, 5.5*2.1mm DC Input
System Windows 11 Pro
Dimensions 128.2*128.2*41mm
Material High thermal conductivity aluminum alloy with dual exhaust vents
Fan Size 80mm x 10mm
Fan Speed 2000+ RPM
Cooling Features Efficient cooling with MOSFET and inductor heat dissipation
Included Main unit, manual, HDMI cable, bracket, screws, adapter
Processor AMD Ryzen™ 7 5825U Processor, 8 Cores / 16 Threads (Zen3 architecture, TSMC 7nm FinFET process, 16 MB L3 Cache, Base frequency 2.0 GHz, Turbo frequency up to 4.5 GHz, Max TDP 28W)
Graphics Card Radeon™ Graphics (Graphics frequency: 2000 MHz, Number of graphics cores: 8)
RAM 16 GB SO-DIMM DDR4 3200 MHz (up to 64 GB with 2×SO-DIMM slots, dual-channel supported)
Storage Configuration 512 GB M.2 2280 SSD, up to 2 TB per slot with dual M.2 2280 slots (1 slot supports NVMe PCIe3.0/SATA SSD, 1 slot supports SATA SSD)
Wireless Connectivity WiFi 6 + Bluetooth 5.2 (M.2 2230)
Video Output HDMI 2.0*1 (4K@60Hz)
USB 3.2 Gen 1 Type-C*1 (4K@60Hz)
DP 1.4*1 (4K@60Hz)
Audio Output HDMI 2.0*1
USB 3.2 Gen 2 Type-C*1
DP 1.4*1
3.5mm Audio Jack*1
Ports & Buttons 10/100/1000 Mbps adaptive RJ45 Gigabit Ethernet*1
USB 3.2 Gen2 Type-A*2 (10 Gbps, front)
USB 3.2 Gen1 Type-A4 (5 Gbps, rear)
USB 3.2 Gen2 Type-C*1 (Data + DP1.4 video output, up to 10 Gbps)
DC Input Port*1
HDMI 2.0*1 (4K@60Hz)
DP 1.4b*1 (4K@60Hz)
3.5mm Audio Jack*1
Power Button*1
Power 19 V/3.42 A, 5.5*2.1mm DC Input
System Windows 11 Pro
Dimensions 128.2*128.2*41mm
Material High thermal conductivity aluminum alloy with dual exhaust vents
Fan Size 80mm x 10mm
Fan Speed 2000+ RPM
Cooling Features Efficient cooling with dual exhaust vents and airflow guide structure; enhanced MOSFET and inductor heat dissipation
Included Main unit, manual, HDMI cable, bracket, screws, adapter
Processor AMD Ryzen™ 7 7730U Processor, 8 Cores / 16 Threads (Zen 3 architecture, TSMC 7nm process, 16MB L3 Cache, Base frequency 2.0GHz, Turbo frequency up to 4.5GHz)
Graphics Card AMD Radeon™ Graphics (Graphics frequency: 2000MHz, Number of graphics cores: 8)
RAM 16GB LPDDR4X 3733MT/s onboard memory (non-upgradable)
Storage Configuration 512GB / 1TB M.2 2280 SATA SSD, dual M.2 2280 slots (SATA & PCIe supported)
Wireless Connectivity WiFi 6 + Bluetooth 5.2 (M.2 2230)
Video Output HDMI 2.0*1 (4K@60Hz) USB 3.2 Gen2 Type-C*1 (DP1.4, 4K@60Hz) DP1.4b*1 (4K@60Hz)
Audio Output HDMI 2.0*1 USB 3.2 Gen2 Type-C*1 DP1.4b *1 3.5mm Audio Jack*1
Ports & Buttons 10/100/1000Mbps RJ45 Gigabit Ethernet*1
USB 3.2 Gen2 Type-A*2 (10Gbps, front)
USB 3.2 Gen1 Type-A*4 (5Gbps, rear)
USB 3.2 Gen2 Type-C*1 (DP1.4 + data transfer up to 10Gbps)
DC Input*1
HDMI 2.0*1
DP1.4b*1
3.5mm Audio Jack*1
Power Button*1
Power 19 V/3.42 A, 5.5*2.1mm DC Input
System Windows 11 Pro
Dimensions 128.2*128.2*41mm
Material ABS + PC chassis with spray-coated finish, black shell with silver logo
Fan Size 80mm x 10mm
Fan Speed 2000+ RPM
Cooling Features Large aluminum heatsink area, professional airflow structure, enhanced MOSFET and inductor cooling
Included Main unit, manual, HDMI cable, bracket, screws, adapter

How do I install the WLAN/Bluetooth driver?

Click the download link

Driver download link:

Click the download link.
