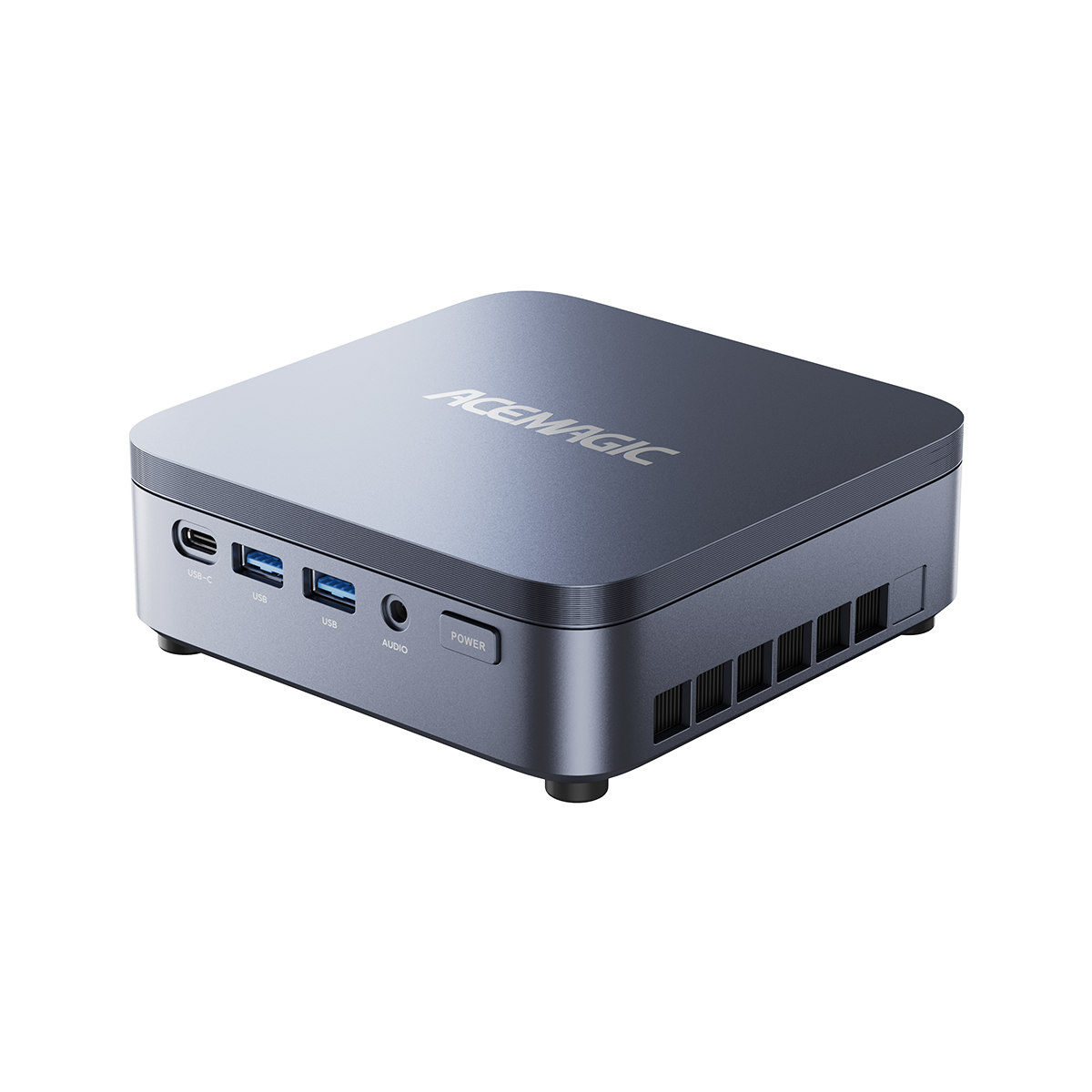

ACEMAGIC Matrix Mini M5 i9-14900HX/Intel I7-14650HX/I5-14500HX Mini PC

New

Office

High Performance

ACEMAGIC Matrix Mini M5 i9-14900HX/Intel I7-14650HX/I5-14500HX Mini PC

823,00 €; ~~909,00 €~~; 823,00 €
Unit price: per

M5 14500HX 32+1TB

232€ OFF

Exclusive for EU – from 479€

M514500HX

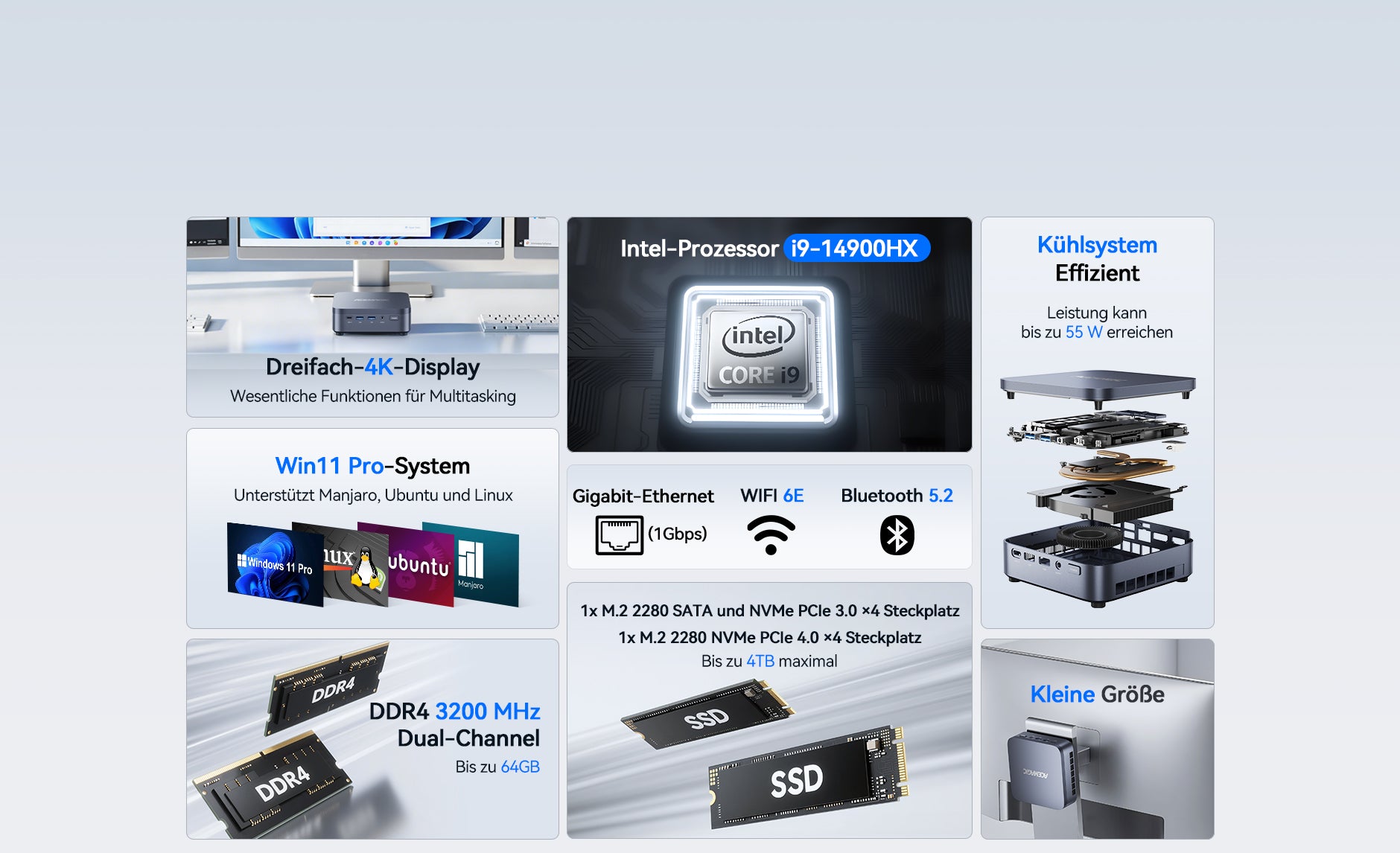

Intel® Core™ i9-14900HX processor

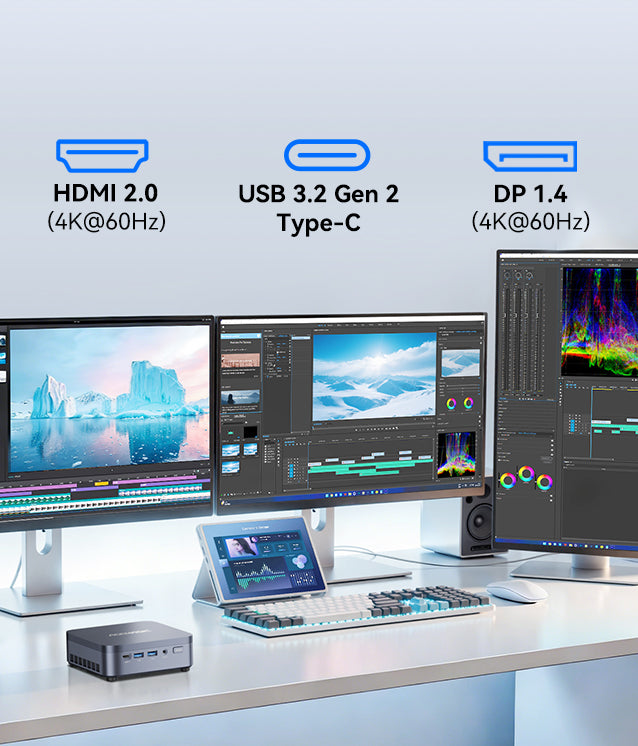

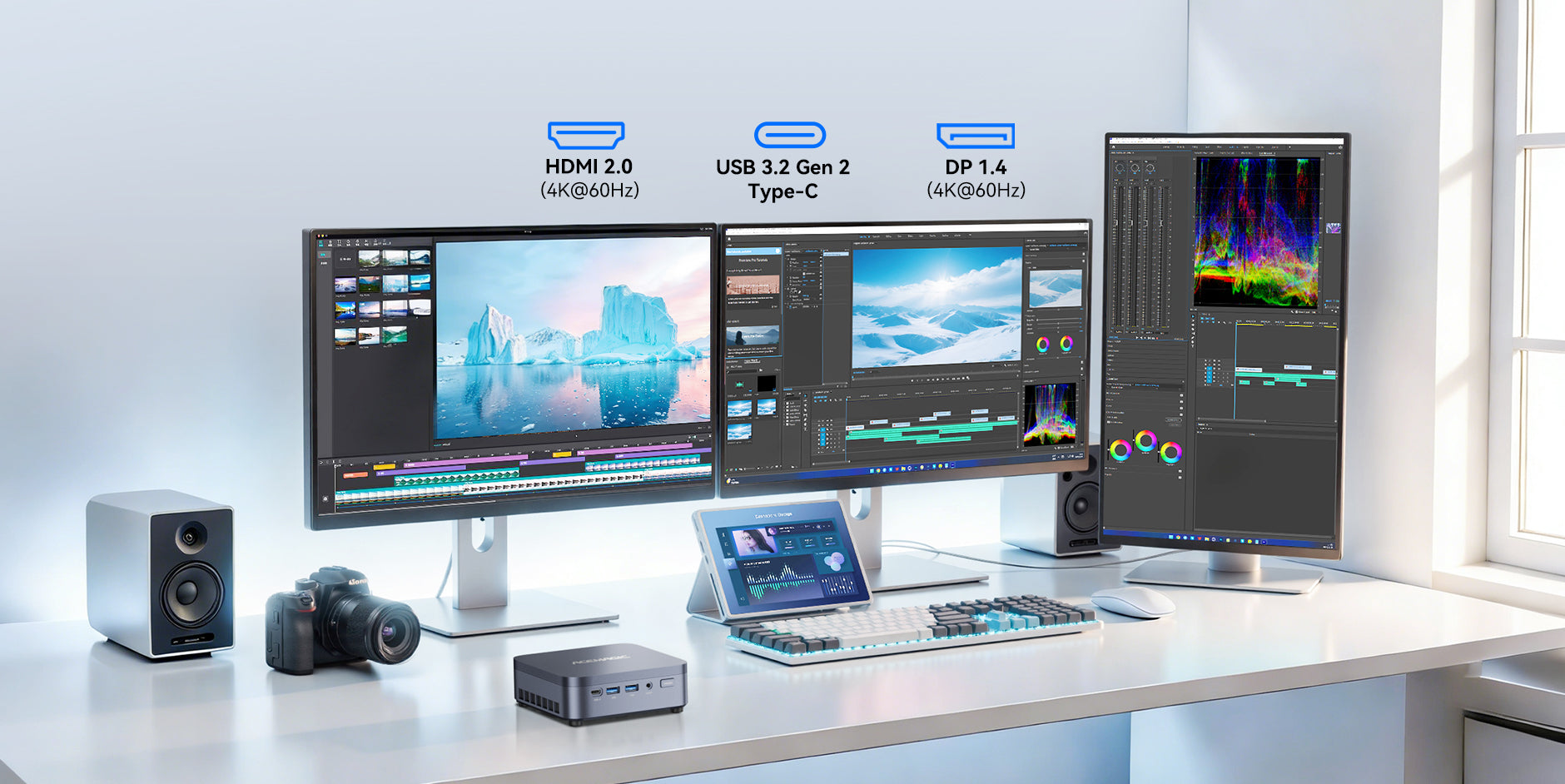

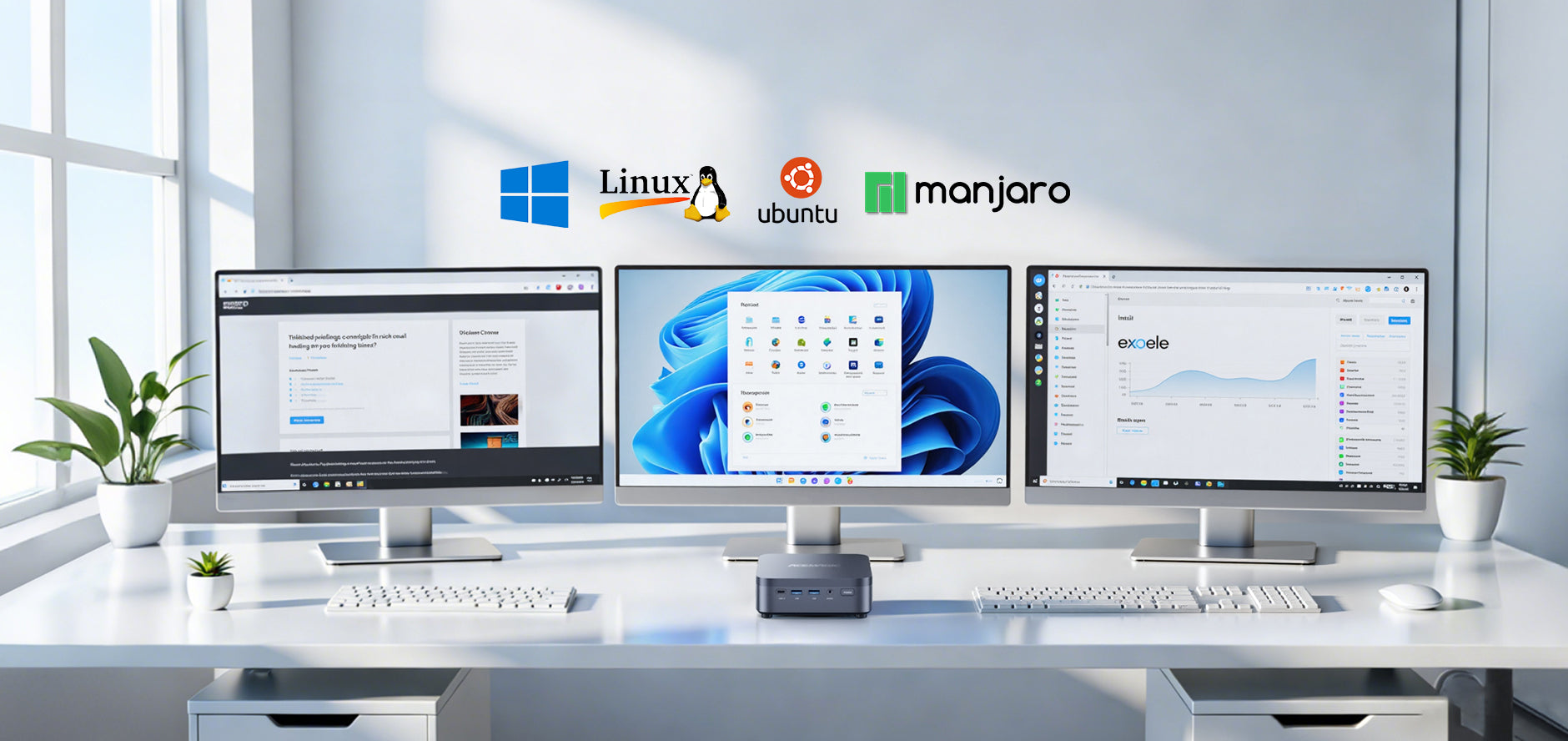

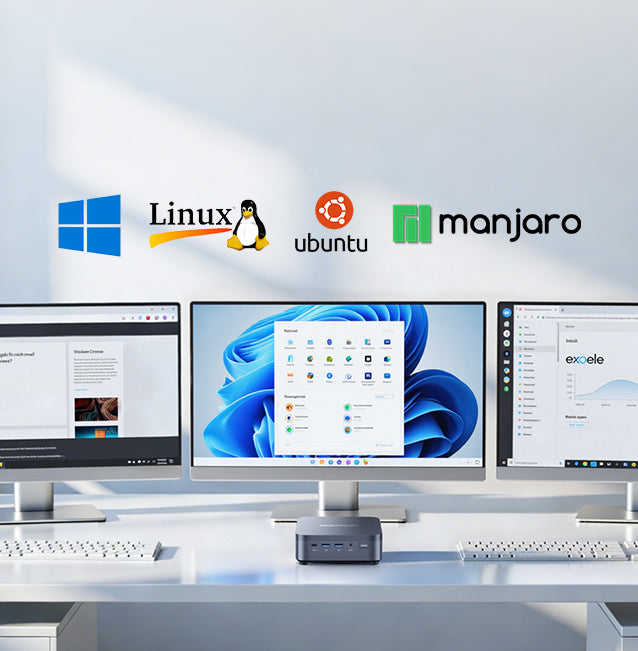

Three 4K displays for efficient work

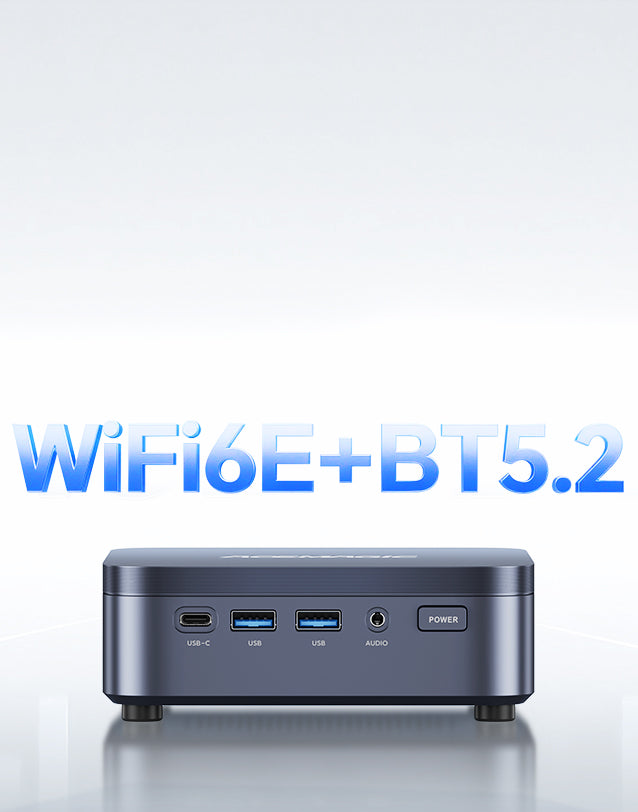

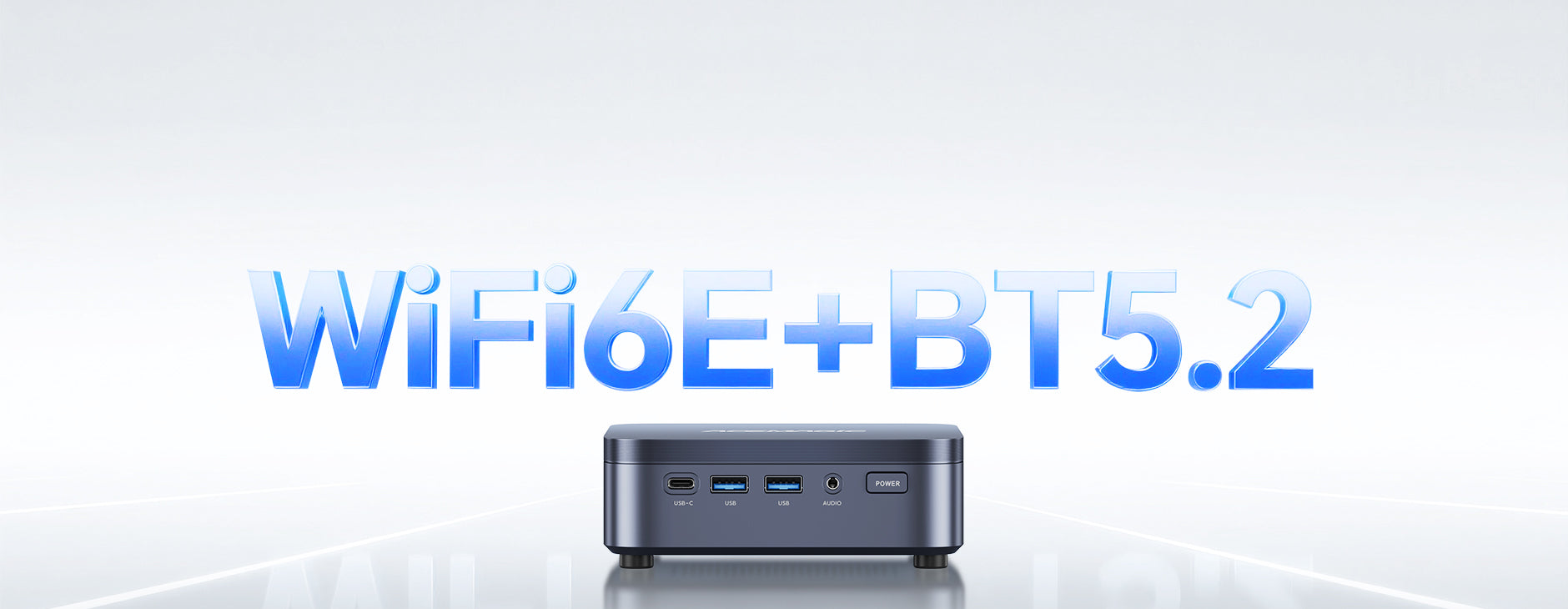

WiFi 6E, BT 5.2
Windows 11 Pro
Compact design without performance loss
DDR4 3200 MHz dual channel

CPU: Intel i7-14650HX Intel i7-14650HX Intel i9-14900HX Intel i5-14500HX

TYPE: 32GB RAM + 1TB SSD 32GB RAM + 1TB SSD

Product variants

Subtotal: 823,00 €

Quantity:

Shipping Guarantee

Shipped from Warehouse in Germany

Free Standard Shipping within Europe

Shipping Policy

Warranty

30-Day Hassle-Free Return Policy

2-Year Warranty

Lifetime Technical Support

Warranty Policy

ACEMAGIC Matrix Mini M5 i9-14900HX/Intel I7-14650HX/I5-14500HX Mini PC

~~909,00 €~~ 823,00 €

Choose Options

Quantity:

ACEMAGIC Matrix Mini M5 i9-14900HX/Intel I7-14650HX/I5-14500HX Mini PC

~~909,00 €~~ 823,00 €

CPU: Intel i7-14650HX Intel i7-14650HX Intel i9-14900HX Intel i5-14500HX

TYPE: 32GB RAM + 1TB SSD 32GB RAM + 1TB SSD

Product variants

Description
14500HX
14650HX
14900HX
FAQ

Description

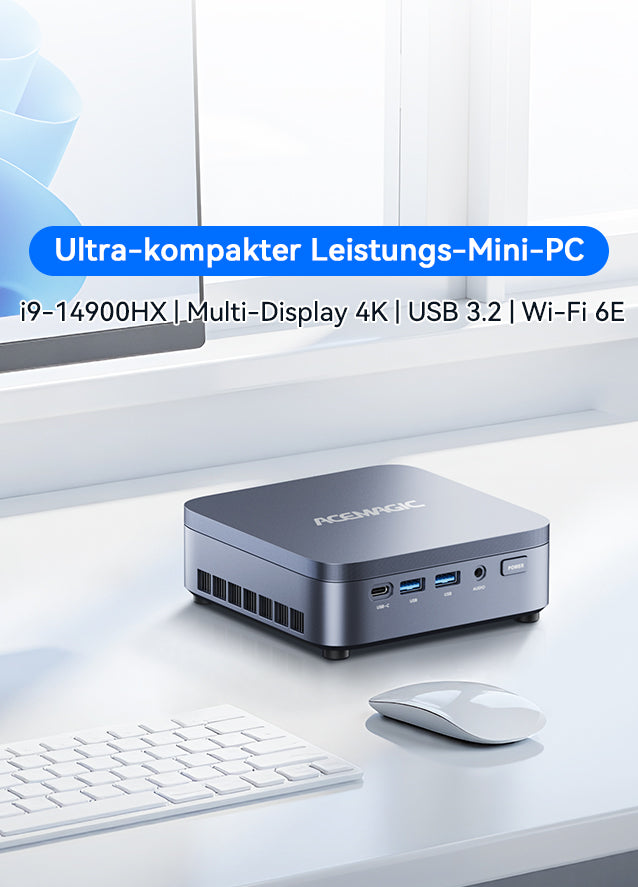

The ACEMAGIC Matrix Mini M5 is a high-performance mini PC equipped with an Intel® Core™ i9-14900HX processor. With 32 GB of DDR4 RAM and a 1 TB SSD, it is ideal for work. It supports 4K@60Hz triple display output, is compatible with WiFi 6E, and runs on Windows 11 Pro.

14500HX

Processor	Intel® Core™ i5-14500HX Processor, 14 Cores (6P+8E) / 20 Threads, Intel 7 (10 nm) process, 24MB Intel® Smart Cache, Base Frequency: 2.6 GHz, Turbo Frequency up to 4.9 GHz
Graphics Card	Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum Dynamic Frequency: 1.55 GHz, Execution Units: 32)

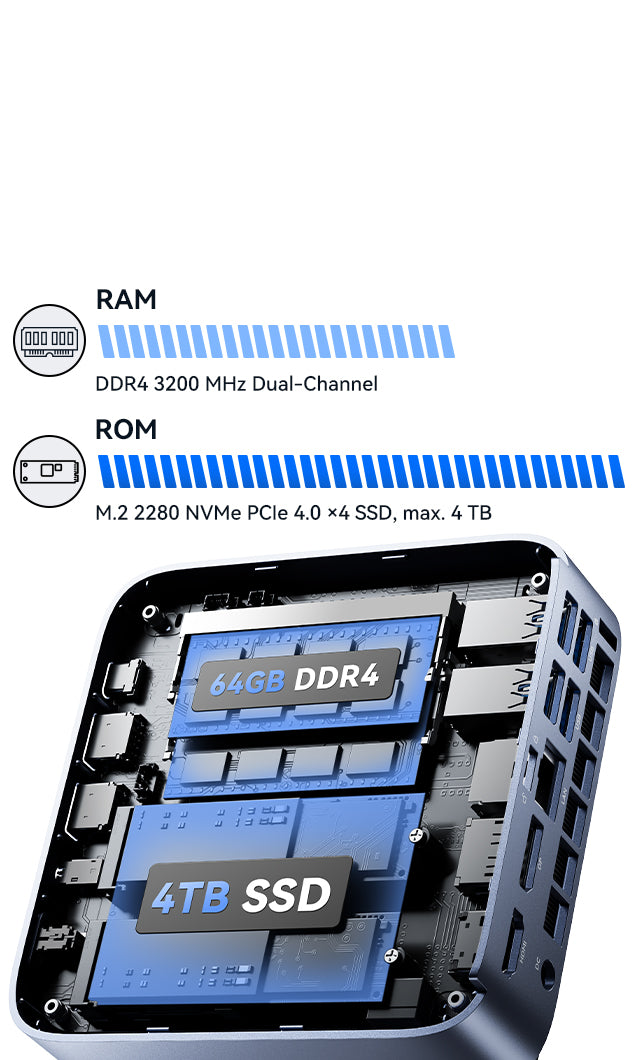

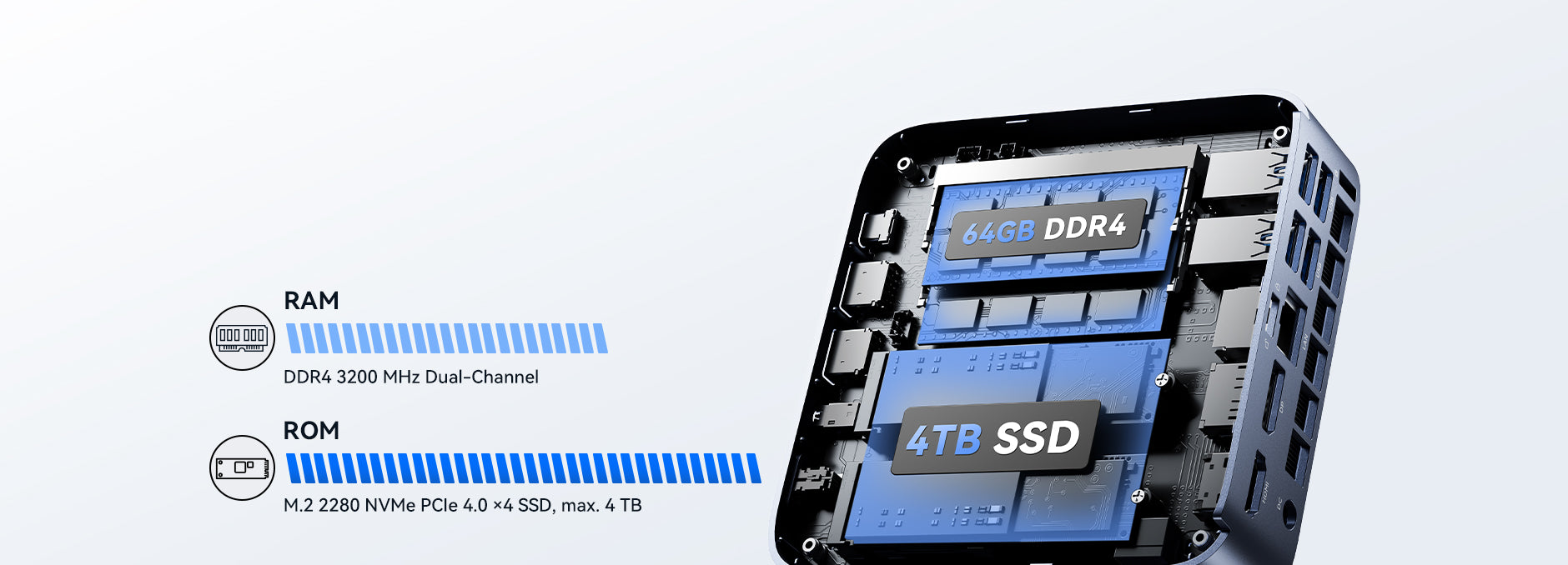

RAM	16GB (1x16GB) or 32GB (2x16GB) DDR4 3200MT/s (SO-DIMM Slots ×2, up to 64GB, supports DDR4 3200MHz max frequency)
Storage Configuration	512GB or 1TB M.2 2280 NVMe PCIe4.0×4 SSD, additional M.2 2280 NVMe PCIe3.0×4 Slot ×1 (up to 2TB per slot, total 4TB)
Wireless Connectivity	WiFi 6 + BT 5.2 (M.2 2230)
Video Output	HDMI 2.0 ×1 (4K@60Hz) USB3.2 Gen2 Type-C ×1 (10Gbps data transfer, DP 1.4 [4K@60Hz], PD 15W) DP 1.4b ×1 (4K@60Hz)
Audio Output	HDMI 2.0 ×1 USB 3.2 Gen2 Type-C ×1 DP 1.4 ×1 3.5mm Audio Jack ×1

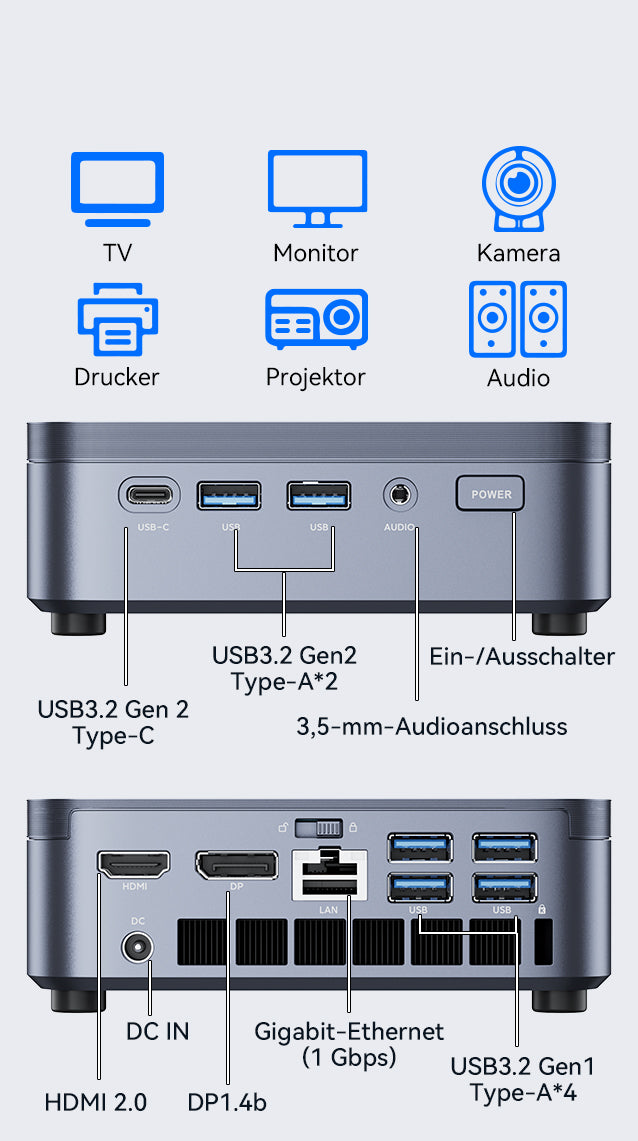

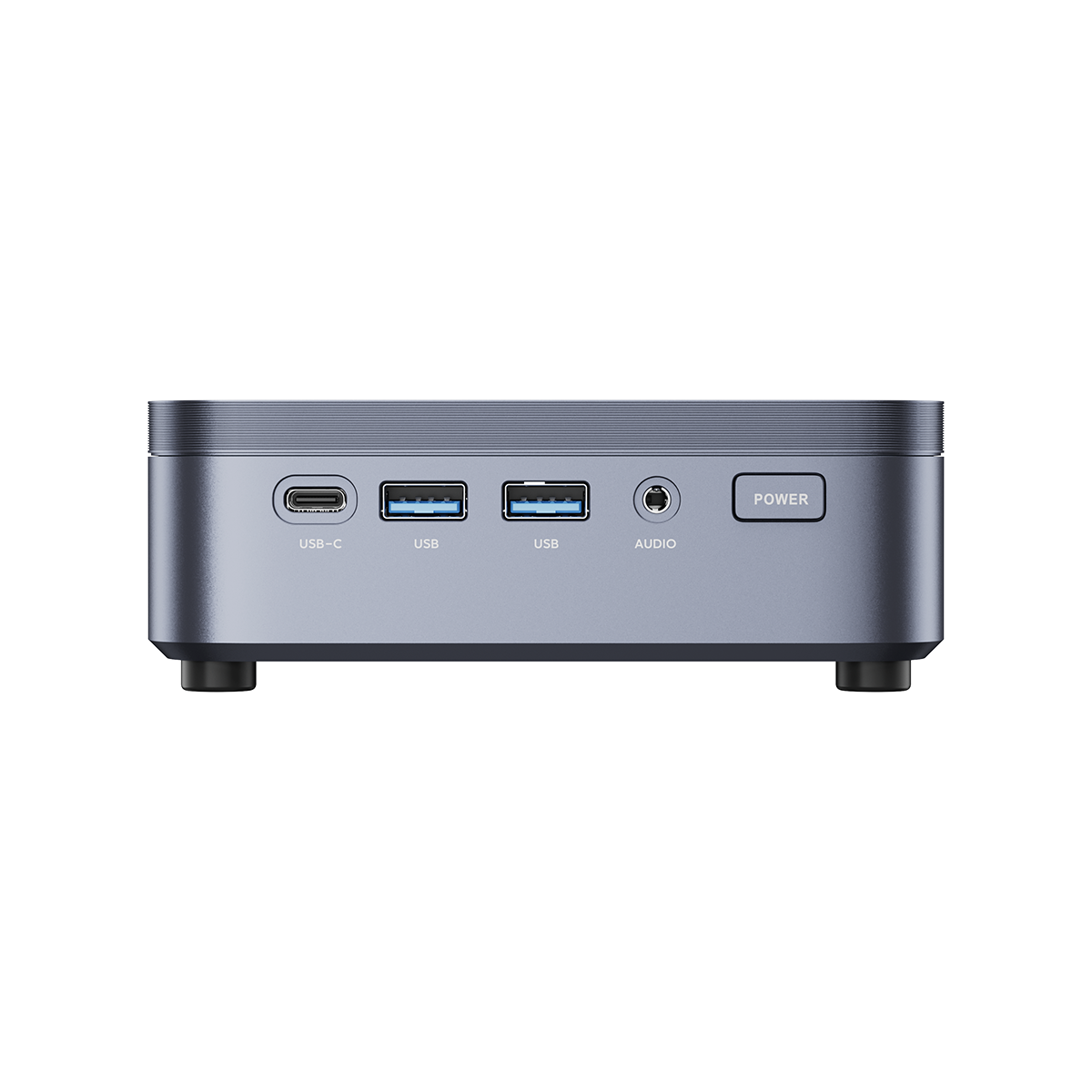

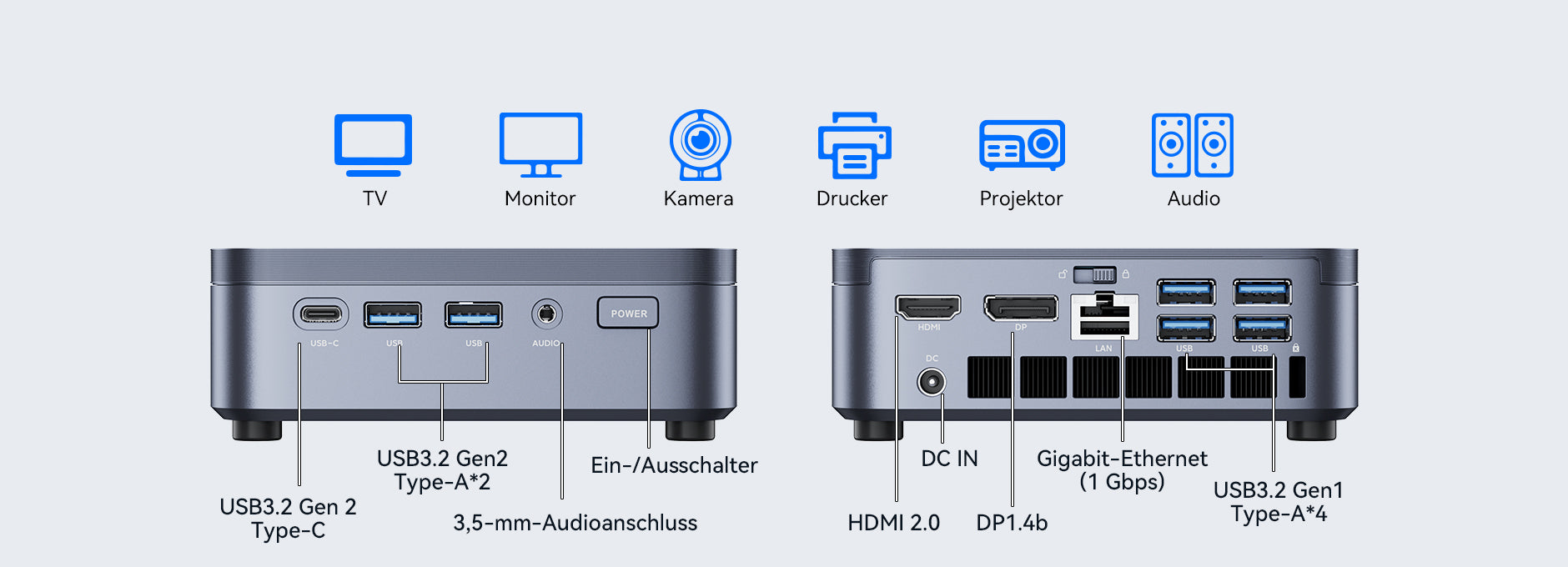

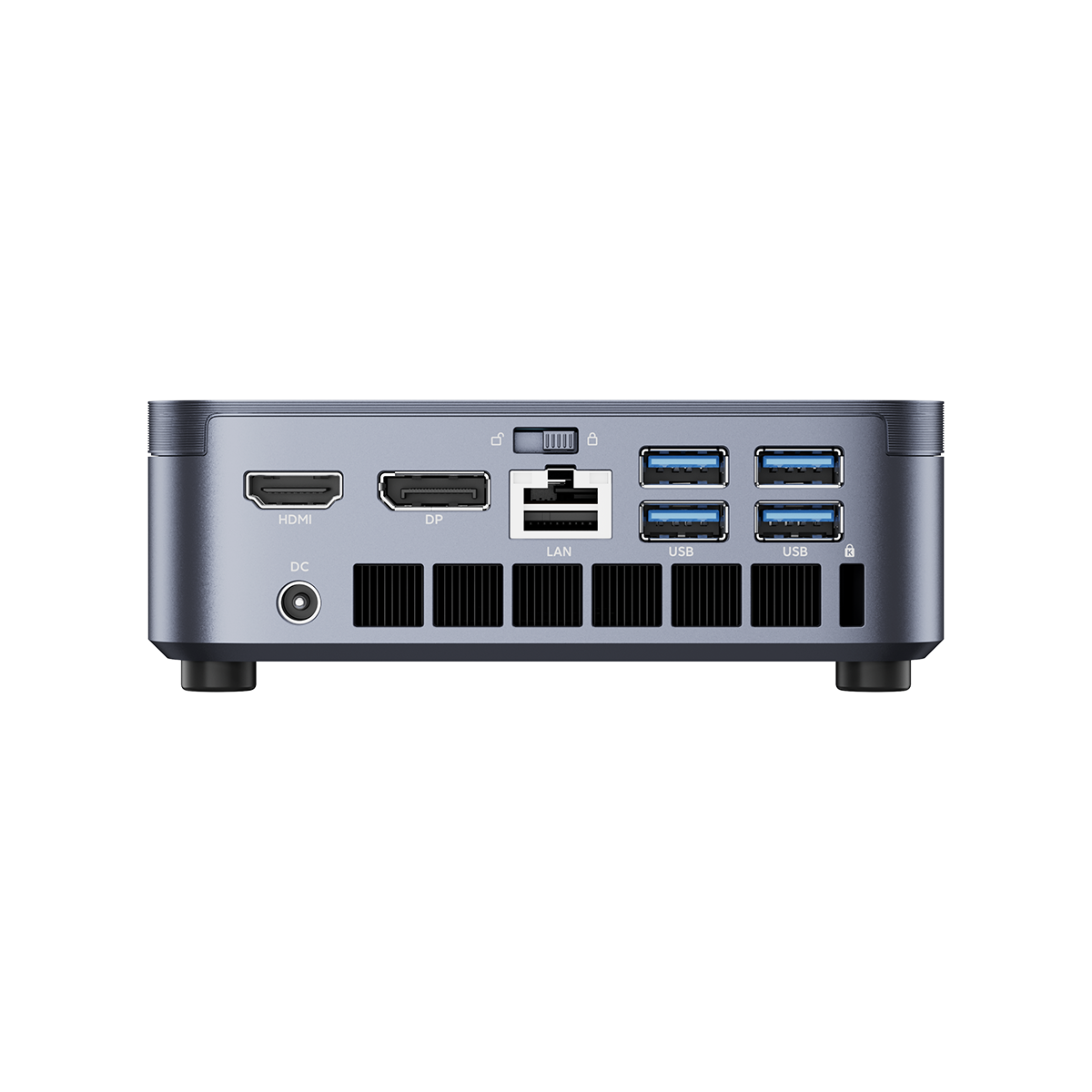

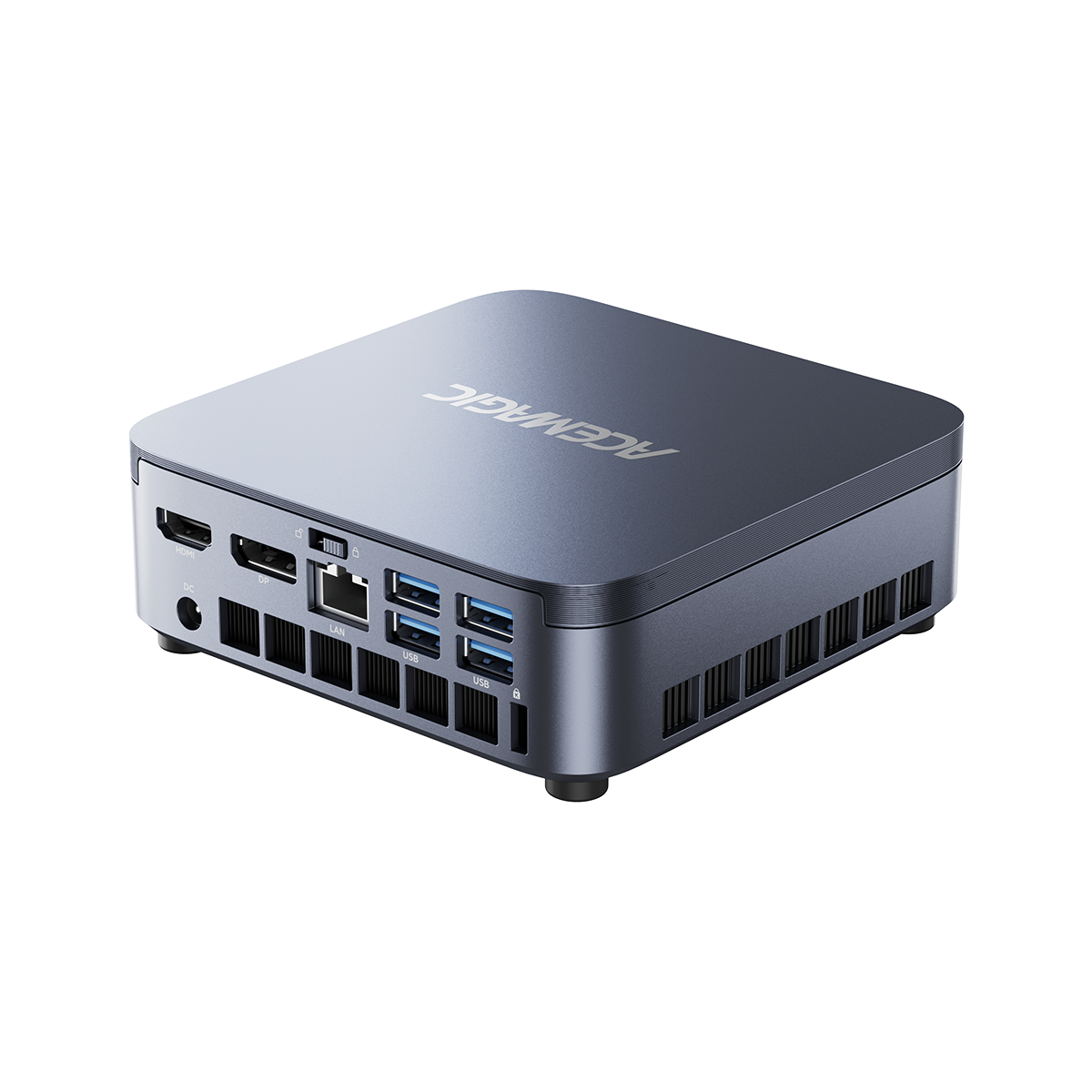

Ports & Buttons	10/100/1000Mbps Adaptive RJ45 Gigabit Ethernet ×1 USB 3.2 Gen2 Type-A ×2 (10Gbps, front) USB 3.2 Gen1 Type-A ×4 (5Gbps, rear) USB 3.2 Gen2 Type-C ×1 (10Gbps, DP 1.4 [4K@60Hz], PD 15W) DC IN ×1 HDMI 2.0 ×1 DP 1.4b ×1 3.5mm Audio Jack ×1 Power Button ×1
Power	DC 19V/6.32A, 5.5×2.1mm DC Connector
System	Windows 11 Pro

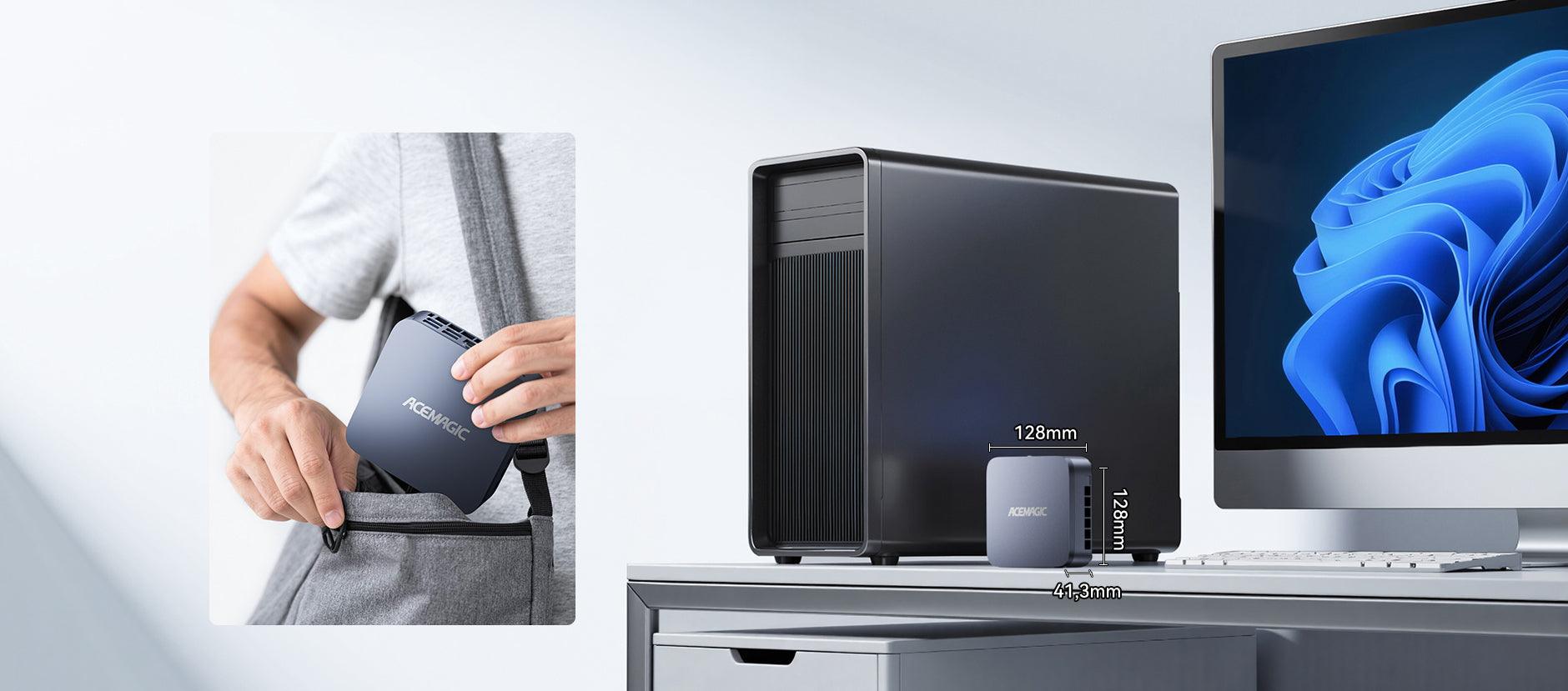

Dimensions	128 × 128 × 41.3 mm

14650HX

Processor	Intel® Core™ i7-14650HX Processor, 16 (8P+8E) Cores / 24 Threads, Intel 7 process, 30MB Intel® Smart Cache, Base Frequency: 2.2 GHz, Turbo Frequency up to 5.2 GHz
Graphics Card	Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum Dynamic Frequency: 1.6 GHz, Execution Units: 16)
RAM	32GB (2x16GB) DDR4 3200MHz Dual Channel (DDR4 SO-DIMM Slot ×2, up to 64GB, supports DDR4 3200MHz max frequency)
Storage Configuration	1TB M.2 2280 NVMe PCIe4.0×4 SSD (1x M.2 2280 SATA&NVMe PCIe3.0×4 Slot, 1x M.2 2280 NVMe PCIe4.0×4 Slot; supports up to 2TB per slot, total 4TB)
Wireless Connectivity	WiFi 6E + BT 5.2 (M.2 2230)
Video Output	HDMI 2.0 ×1 (4K@60Hz) USB3.2 Gen2 Type-C ×1 (10Gbps data transfer, DP 1.4 [4K@60Hz], PD 15W) DP 1.4 ×1 (4K@60Hz)
Audio Output	HDMI 2.0 ×1 USB 3.2 Gen2 Type-C ×1 DP 1.4 ×1 3.5mm Audio Jack ×1
Ports & Buttons	10/100/1000Mbps Adaptive RJ45 Gigabit Ethernet ×1 USB 3.2 Gen2 Type-A ×2 (10Gbps, front) USB 3.2 Gen1 Type-A ×4 (5Gbps, rear) USB 3.2 Gen2 Type-C ×1 (10Gbps, DP 1.4 [4K@60Hz], PD 15W) DC IN ×1 HDMI 2.0 ×1 DP 1.4b ×1 3.5mm Audio Jack ×1 Power Button ×1
Power	DC 19V/6.32A, 5.5×2.1mm DC Connector
System	Windows 11 Pro
Dimensions	128 × 128 × 41.3 mm

14900HX

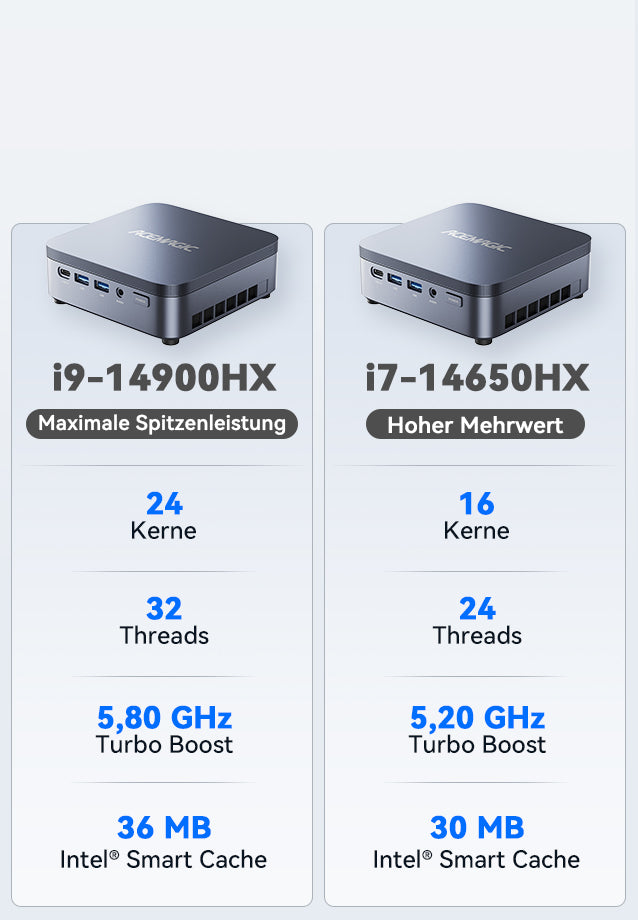

Processor	Intel® Core™ i9-14900HX Processor, 24 (8P+16E) Cores / 32 Threads, Intel 7 process, 36MB Intel® Smart Cache, Base Frequency: 2.2 GHz, Turbo Frequency up to 5.8 GHz
Graphics Card	Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum Dynamic Frequency: 1.65 GHz, Execution Units: 32)
RAM	32GB (2x16GB) DDR4 3200MHz Dual Channel (DDR4 SO-DIMM Slot ×2, up to 64GB, supports DDR4 3200MHz max frequency)
Storage Configuration	1TB M.2 2280 NVMe PCIe4.0×4 SSD (1x M.2 2280 SATA&NVMe PCIe3.0×4 Slot, 1x M.2 2280 NVMe PCIe4.0×4 Slot; supports up to 2TB per slot, total 4TB)
Wireless Connectivity	WiFi 6E + BT 5.2 (M.2 2230)
Video Output	HDMI 2.0 ×1 (4K@60Hz) USB3.2 Gen2 Type-C ×1 (10Gbps data transfer, DP 1.4 [4K@60Hz], PD 15W) DP 1.4 ×1 (4K@60Hz)
Audio Output	HDMI 2.0 ×1 USB 3.2 Gen2 Type-C ×1 DP 1.4 ×1 3.5mm Audio Jack ×1
Ports & Buttons	10/100/1000Mbps Adaptive RJ45 Gigabit Ethernet ×1 USB 3.2 Gen2 Type-A ×2 (10Gbps, front) USB 3.2 Gen1 Type-A ×4 (5Gbps, rear) USB 3.2 Gen2 Type-C ×1 (10Gbps, DP 1.4 [4K@60Hz], PD 15W) DC IN ×1 HDMI 2.0 ×1 DP 1.4b ×1 3.5mm Audio Jack ×1 Power Button ×1
Power	DC 19V/6.32A, 5.5×2.1mm DC Connector
System	Windows 11 Pro
Dimensions	128 × 128 × 41.3 mm

FAQ

M5 teardown video:

M5 teardown video-Link.

Amazing Value for the Money

This mini PC is a fantastic deal at the current price. The performance is much better than I expected, and it easily handles my daily office work, browsing, videos, and multitasking. The i7 processor, 32GB RAM, and fast SSD make everything run smoothly. A powerful and affordable choice for everyday use.

Great Performance in a Compact Mini PC

I’m really impressed with this mini PC. The Intel Core i7-14650HX processor delivers excellent performance for daily work, multitasking, and entertainment. 32GB RAM and the 1TB SSD make everything feel fast and smooth. The compact size is a big plus, and the large number of ports is very convenient. Great value for the price!

Powerful Performance in a Small Size

The M5 Mini PC is an excellent choice for both work and daily use. The Intel Core i7-14650HX processor, 32GB RAM, and 1TB SSD provide fast and smooth performance. I can easily handle multitasking, office applications, and demanding workloads without any lag.

The compact design saves a lot of space, while the rich selection of ports makes it easy to connect all my devices. Windows 11 Pro runs perfectly, and the system is stable and reliable. A powerful mini PC that combines performance and convenience. Highly recommended!

Sehr schnelle Lieferung

Sehr schnelle Lieferung.

Der Pc ist super schnell

super

I am a developer, I needed a Linux packages builder with CI/CD pipeline for VSCode, this box has 1tb, i9 with 32 threads and 32gb, and does the job very fast. I love it. Might buy a second one
