ACEMAGIC F5A AMD Ryzen 9 270 Mini PC

699,00 €; ~~1.099,00 €~~; 699,00 €
Unit price: per

Processor AMD Ryzen™ 9 270, 8 Cores/16 Threads
24 GB LPDDR5 6400MT/s + 1 TB M.2 2280 PCIe 4.0 NVMe SSD
AMD Radeon™ 780M
Up to 39 TOPS AI Performance, with up to 16 TOPS NPU
Wi-Fi 6E + BT 5.2, Dual 2.5GbE LAN
Supports Quad Display up to 8K, with Dual USB4 Type-C
3 × M.2 2280 PCIe 4.0 SSD Slots, up to 12TB
Windows 11 Pro

CPU: AMD Ryzen™ 9 270 (Pre-sale: October 19) AMD Ryzen™ 9 270 (Pre-sale: October 19)

TYPE: 24 GB LPDDR5 RAM + 1 TB SSD 24 GB LPDDR5 RAM + 1 TB SSD

Product variants

Subtotal: 699,00 €

Quantity:

Shipping Guarantee

Shipped from Warehouse in Germany

Free Standard Shipping within Europe

Shipping Policy

Warranty

30-Day Hassle-Free Return Policy

2-Year Warranty

Lifetime Technical Support

Warranty Policy

ACEMAGIC F5A AMD Ryzen 9 270 Mini PC

~~1.099,00 €~~ 699,00 €

Choose Options

Quantity:

ACEMAGIC F5A AMD Ryzen 9 270 Mini PC

~~1.099,00 €~~ 699,00 €

CPU: AMD Ryzen™ 9 270 (Pre-sale: October 19) AMD Ryzen™ 9 270 (Pre-sale: October 19)

TYPE: 24 GB LPDDR5 RAM + 1 TB SSD 24 GB LPDDR5 RAM + 1 TB SSD

Product variants

Description
Ryzen 9 270

Description

The ACEMAGIC F5A combines AMD Ryzen™ 9 270 performance with a compact design. With up to 39 TOPS AI performance, dual 2.5GbE LAN, USB4 connectivity, and support for up to three PCIe 4.0 SSDs, it delivers flexible performance for work, AI applications, and everyday productivity.

Ryzen 9 270

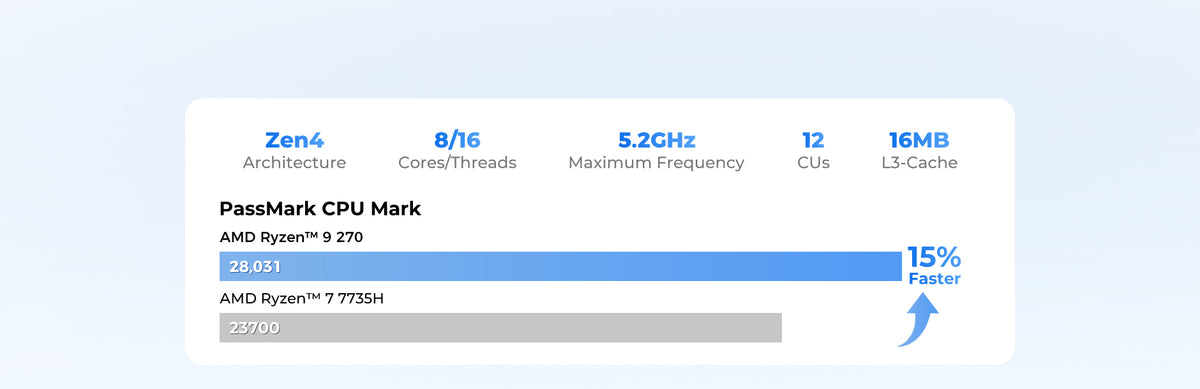

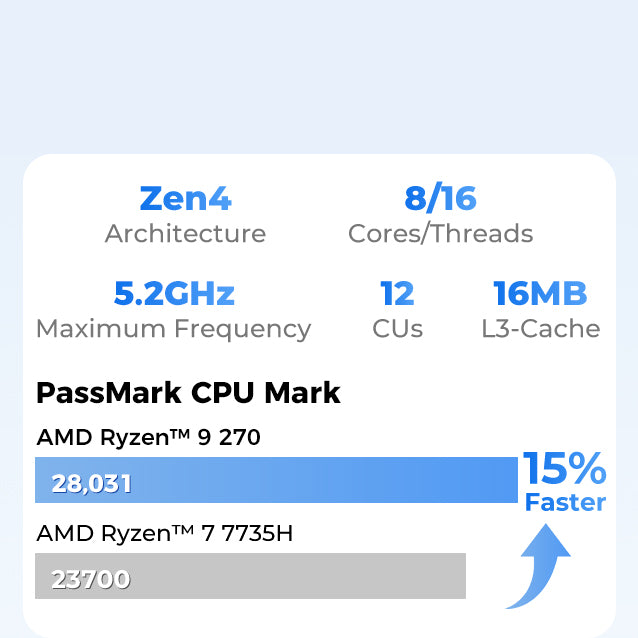

Processor	AMD Ryzen™ 9 270 Processor, 8 Cores / 16 Threads (Zen 4 Architecture, TSMC 4nm FinFET, 16MB L3 Cache, Base Frequency 4.0 GHz, Turbo up to 5.2 GHz)
Graphics	AMD Radeon™ 780M (RDNA 3 Architecture, GPU Frequency up to 2800 MHz, 12 Compute Units)

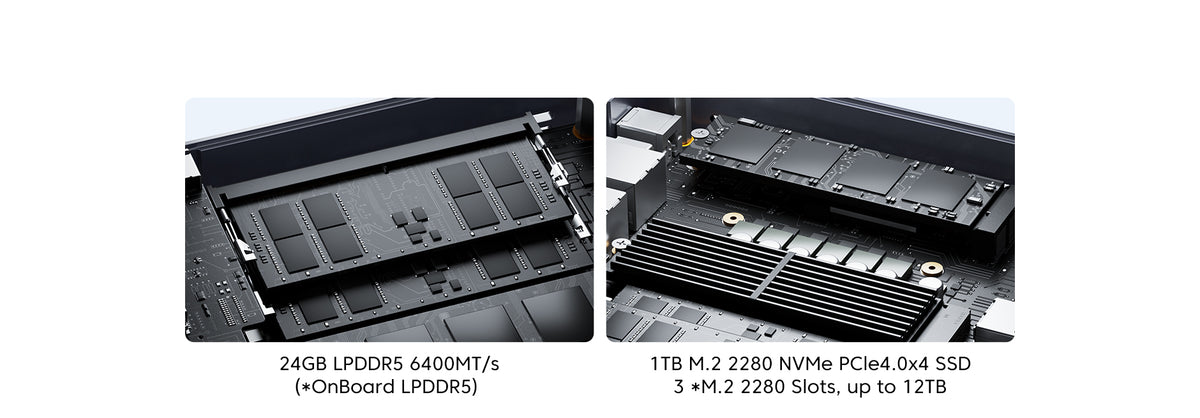

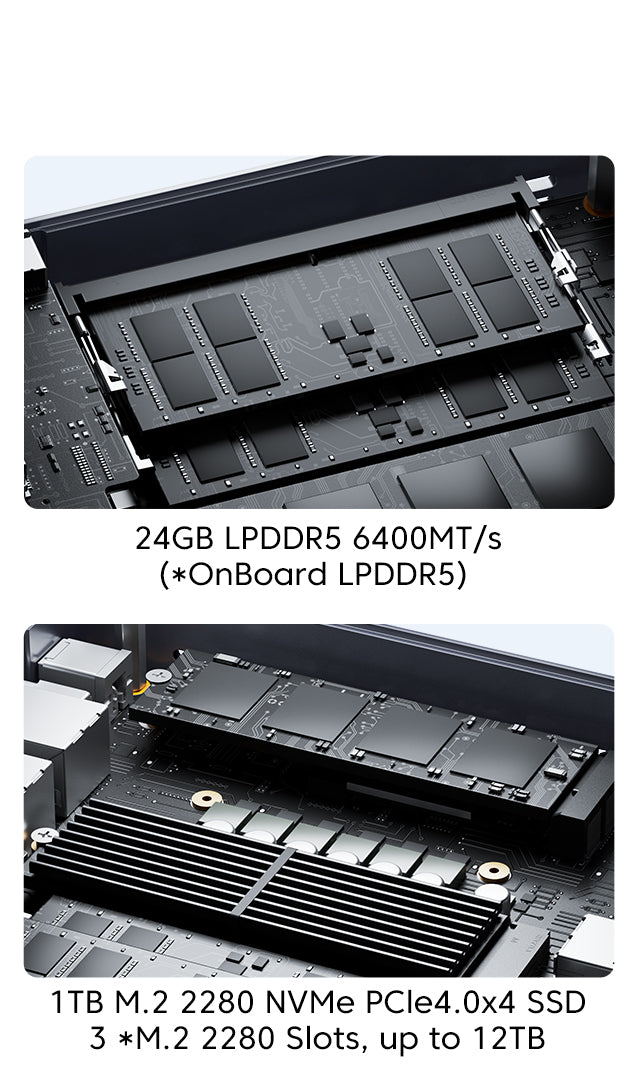

RAM	Onboard LPDDR5 memory, not expandable or upgradable. 24GB LPDDR5 6400 MT/s
Storage Configuration	1TB M.2 2280 PCIe 4.0 ×4 NVMe SSD 3 × M.2 2280 Slots, Support M.2 NVMe PCIe 4.0×4 SSD Maximum Storage: Up to 12TB (SATA SSD Not Supported)
Wireless Connectivity	Wi-Fi 6E + Bluetooth 5.2 (M.2 2230)
Video Output	HDMI 2.1 ×1 (8K@60Hz) USB 4 Type-C ×2 (DP 1.4, up to 8K@60Hz / 4K@120Hz, up to 40 Gbps) DP 2.1 ×1 (8K@60Hz)
Audio Output	3.5mm Audio Jack ×1
Ports & Buttons	RJ45 Ethernet Port ×2 (2.5 Gbps) USB 3.2 Gen 2 Type-A ×2 (10 Gbps, Front) USB 3.2 Gen 2 Type-A ×1 (10 Gbps, Rear) USB 2.0 Type-A ×1 (Rear) USB 4 Type-C ×2 (Max 40 Gbps, DP 1.4, 8K@60Hz / 4K@120Hz, PD 100W input / PD 15W output) DC-IN ×1 HDMI 2.1 ×1 DP 2.1 ×1 3.5mm Audio Jack ×1 OCuLink Port ×1 (eGPU supported) Power Button ×1
Power Supply	DC 19V / 6.3A, 5.5 × 2.5 mm
Operating System	Windows 11 Pro
Dimensions	130 × 132 × 62 mm
