ACEMAGIC F9A Ryzen™ AI Max+ PRO 495 AI Mini Workstation

ACEMAGIC F9A Ryzen™ AI Max+ PRO 495 AI Mini Workstation

6.399,00 €; ~~6.999,00 €~~; 6.399,00 €
Unit price: per

Up to 131 TOPS AI performance with 192GB unified memory, supporting local 70B–200B LLMs and professional workloads.
OCuLink PCIe 4.0 x4 expansion for high-speed networking, capture cards and professional devices.
Dedicated Copilot key for one-click AI creation, interaction and productivity.
4-mic omnidirectional audio and 2W×2 speakers for AI meetings, voice interaction and entertainment.
4-display output with up to 4K/8K resolution via HDMI 2.1, DP 2.1 and dual USB4.
SD card slot for fast and convenient media transfers.
Dual 2.5G LAN + WiFi 7 for flexible networking, isolation and link aggregation.
Dual USB4 Type-C with up to 40Gbps, DP 2.1 8K@60Hz and 15W PD output.
5-heat-pipe cooling with 3D airflow design sustains up to 120W TDP for long AI workloads.
Compact 2L metal chassis with a sleek Studio-style design for easy deployment and portability.
Windows 11 Pro pre-installed, with Linux and Ubuntu support.

CPU: AMD Ryzen™ AI Max+ PRO 495 (Pre-sale: Late October) AMD Ryzen™ AI Max+ PRO 495 (Pre-sale: Late October)

TYPE: 192GB+2TB 192GB+2TB

Product variants

Subtotal: 6.399,00 €

Quantity:

Shipping Guarantee

Shipped from Warehouse in Germany

Free Standard Shipping within Europe

Shipping Policy

Warranty

30-Day Hassle-Free Return Policy

2-Year Warranty

Lifetime Technical Support

Warranty Policy

ACEMAGIC F9A Ryzen™ AI Max+ PRO 495 AI Mini Workstation

~~6.999,00 €~~ 6.399,00 €

Choose Options

Quantity:

ACEMAGIC F9A Ryzen™ AI Max+ PRO 495 AI Mini Workstation

~~6.999,00 €~~ 6.399,00 €

CPU: AMD Ryzen™ AI Max+ PRO 495 (Pre-sale: Late October) AMD Ryzen™ AI Max+ PRO 495 (Pre-sale: Late October)

TYPE: 192GB+2TB 192GB+2TB

Product variants

Description
Specification

Description

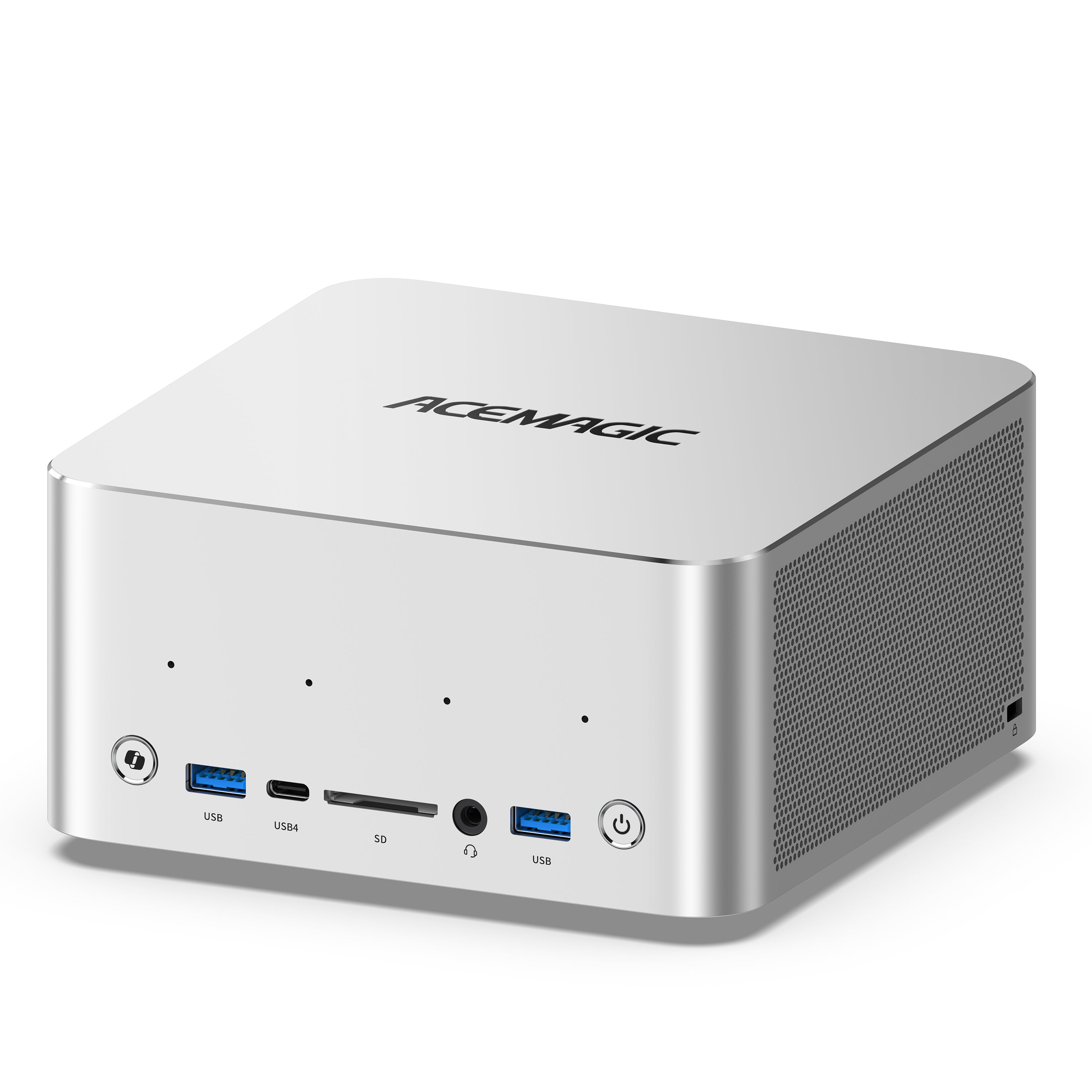

The ACEMAGIC F9A is a compact AI mini workstation powered by the AMD Ryzen™ AI Max+ PRO 495 processor. With up to 131 TOPS of AI performance, 192GB unified memory, and Radeon™ 8065S graphics, it is built for local AI workloads, LLM inference, creative work, and professional multitasking. Its compact 2L metal design, dual 2.5GbE LAN, USB4, OCuLink, and support for up to four displays provide flexible connectivity for both professional and everyday use.

Specification

Processor	AMD Ryzen™ AI Max+ PRO 495 Processor 16 cores / 32 threads, Zen 5 architecture, TSMC 4nm process, up to 5.2GHz, 80MB L2 + L3 Cache, up to 176W performance, 120W TDP, XDNA 2 NPU up to 55 TOPS
Graphics	AMD Radeon™ 8065S Graphics RDNA 3.5 architecture, 40 CUs / 2560 Stream Processors, up to 3.0GHz, UMA, up to 160GB shared memory, 256-bit, up to 256GB/s bandwidth, FSR, AV1, DirectX 12 Ultimate
RAM	192GB LPDDR5X 8533MT/s (onboard, non-upgradable)
Storage Configuration	2× M.2 2280 NVMe PCIe 4.0×4 slots 1TB / 2TB SSD pre-installed, up to 8TB total storage
Wireless Connectivity	WiFi 7 + Bluetooth 5.4 (M.2 2230) Dual 2.5Gbps LAN
Video Output	1× HDMI 2.1 (8K@60Hz) 1× DP 2.1 (8K@60Hz) 2× USB4 Type-C (40Gbps, DP 2.0, up to 8K@60Hz)
Audio Output	1× 3.5mm Combo Audio Jack 1× 3.5mm Line-Out

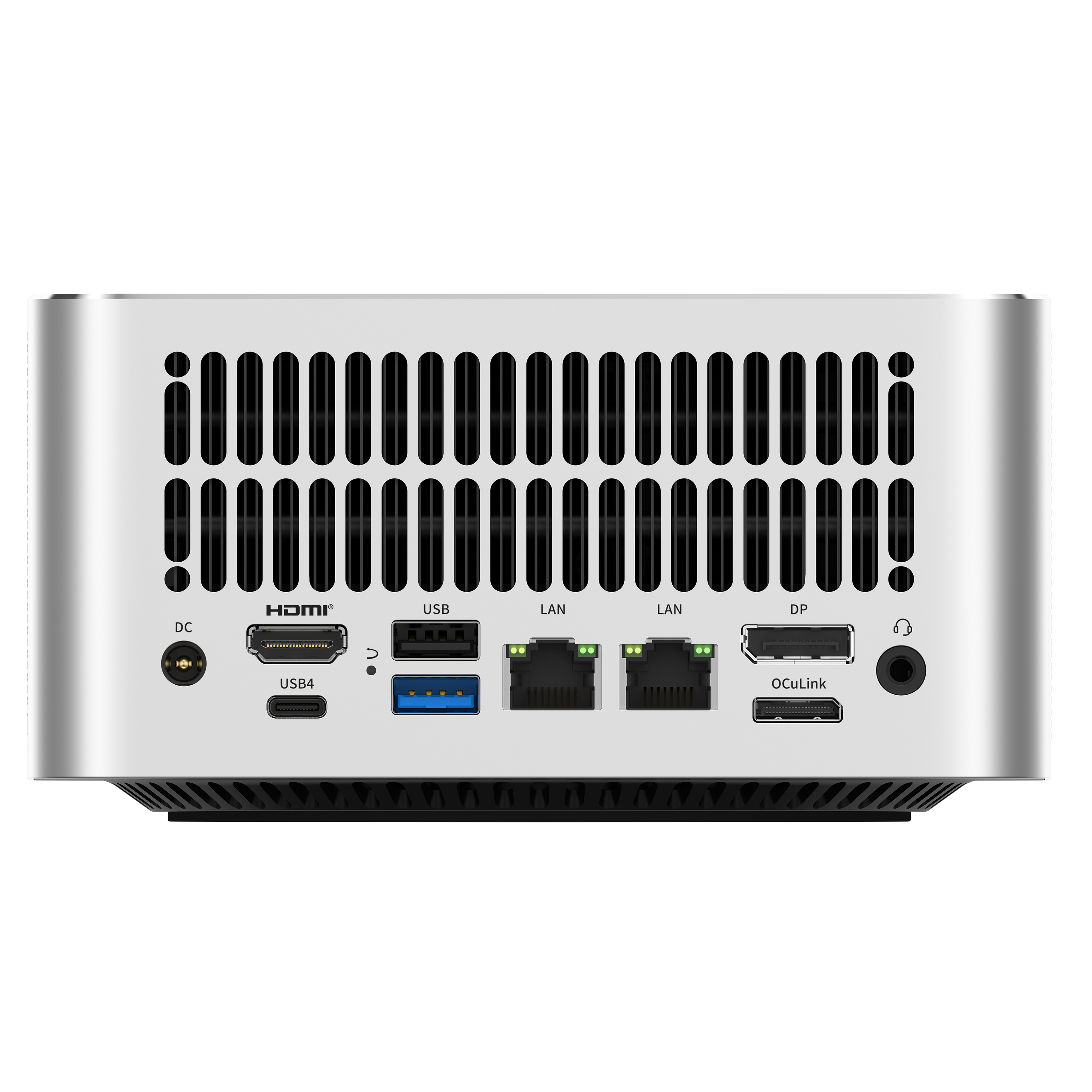

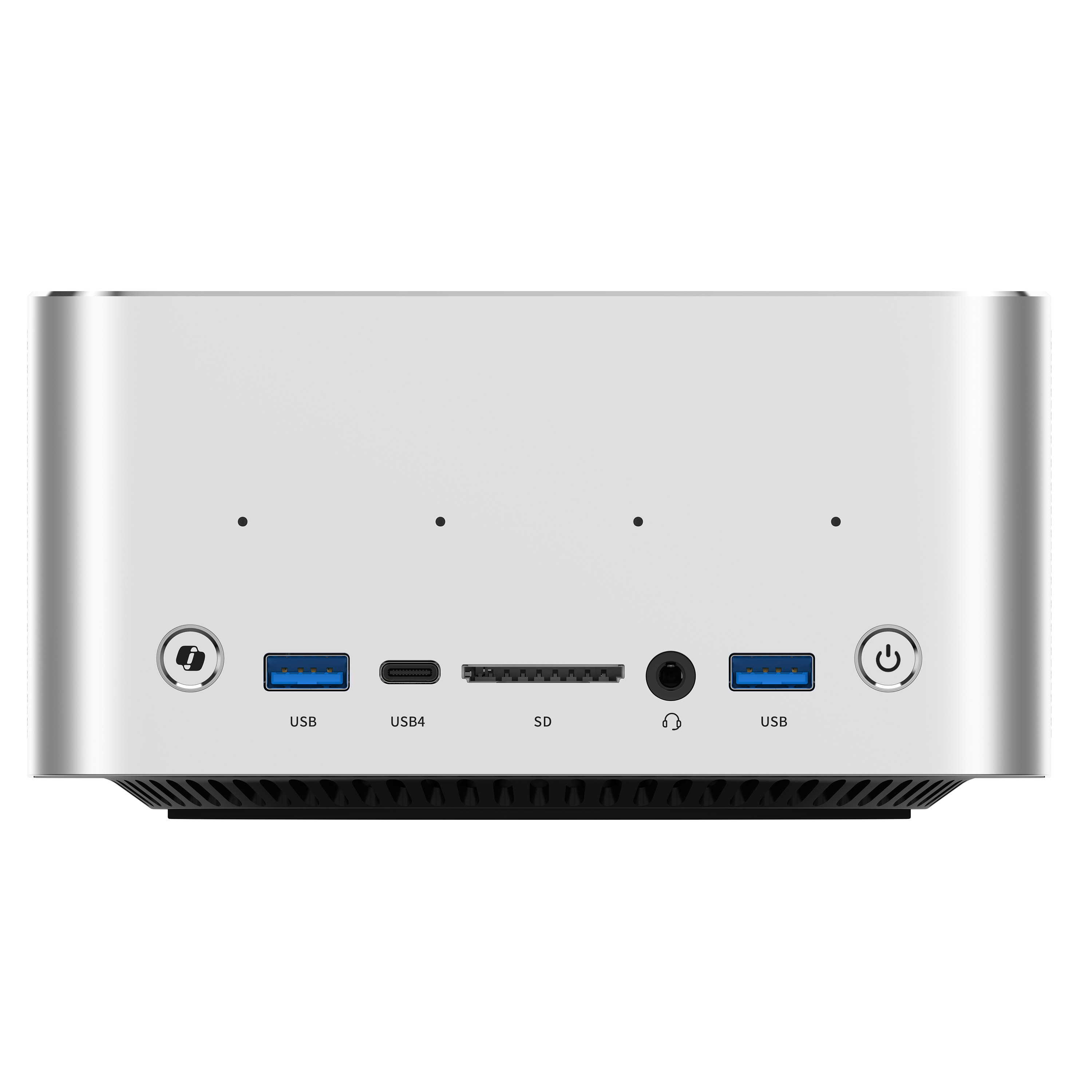

Ports & Buttons	Front: 2× USB4 Type-C 2× USB 3.2 Gen2 Type-A 1× USB 2.0 1× SD Card Slot 1× 3.5mm Combo Jack 1× Line-Out 1× Power Button 1× Copilot Button 1× Reset Hole Rear: 1× HDMI 2.1 1× DP 2.1 1× USB 3.2 Gen2 Type-A 1× OCuLink (PCIe 4.0×4) 1× DC-In
Power Supply	DC 19.5V / 11.8A, 5.5×2.5mm connector, up to 120W system performance
Operating System	Windows 11 Pro pre-installed, Linux / Ubuntu supported
Dimensions	158.5 × 158.5 × 81.5 mm, approx. 1.4kg Aluminum + ABS + PC housing, silver sandblasted anodized finish
