Description

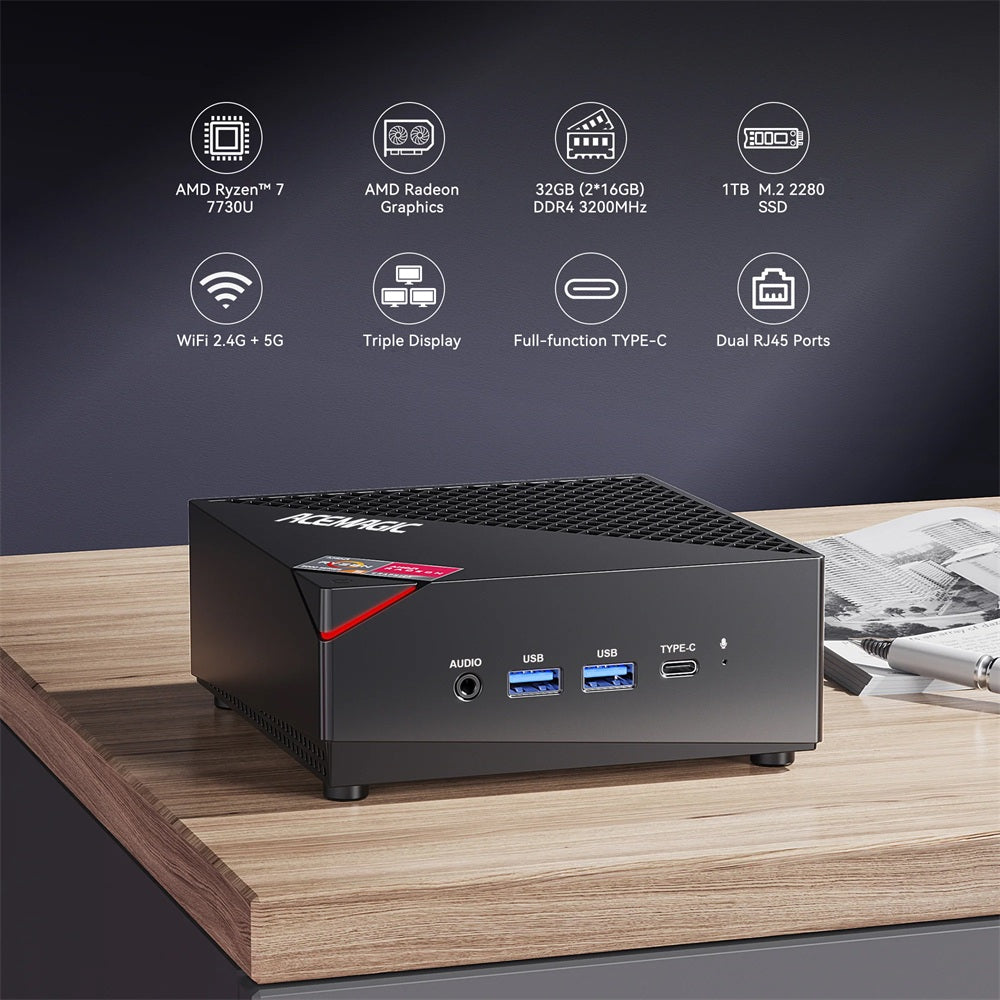

The ACEMAGIC AM06 Pro is a powerful mini PC equipped with an AMD Ryzen 7 7730Uprocessor. It is well-suited for gaming and comes with 32 GB of DDR4 memory and a 1 TB SSD (upgradable to a maximum of 2 TB). It supports triple 4K@60Hz display output via HDMI, USB-C, and DP interfaces. Additionally, it features two Ethernet ports, WiFi 6, and runs on Windows 11.

Specification
Processor AMD Ryzen™ 7 7730U Processor, 8 Cores/16 Threads (Zen3 architecture, TSMC 7nm FinFET process, 16MB L3 Cache, Base frequency 2.0GHz, Turbo frequency up to 4.5GHz)
Graphics Card AMD Radeon RX Vega 8 (Graphics frequency: 2000MHz, Number of graphics cores: 8)

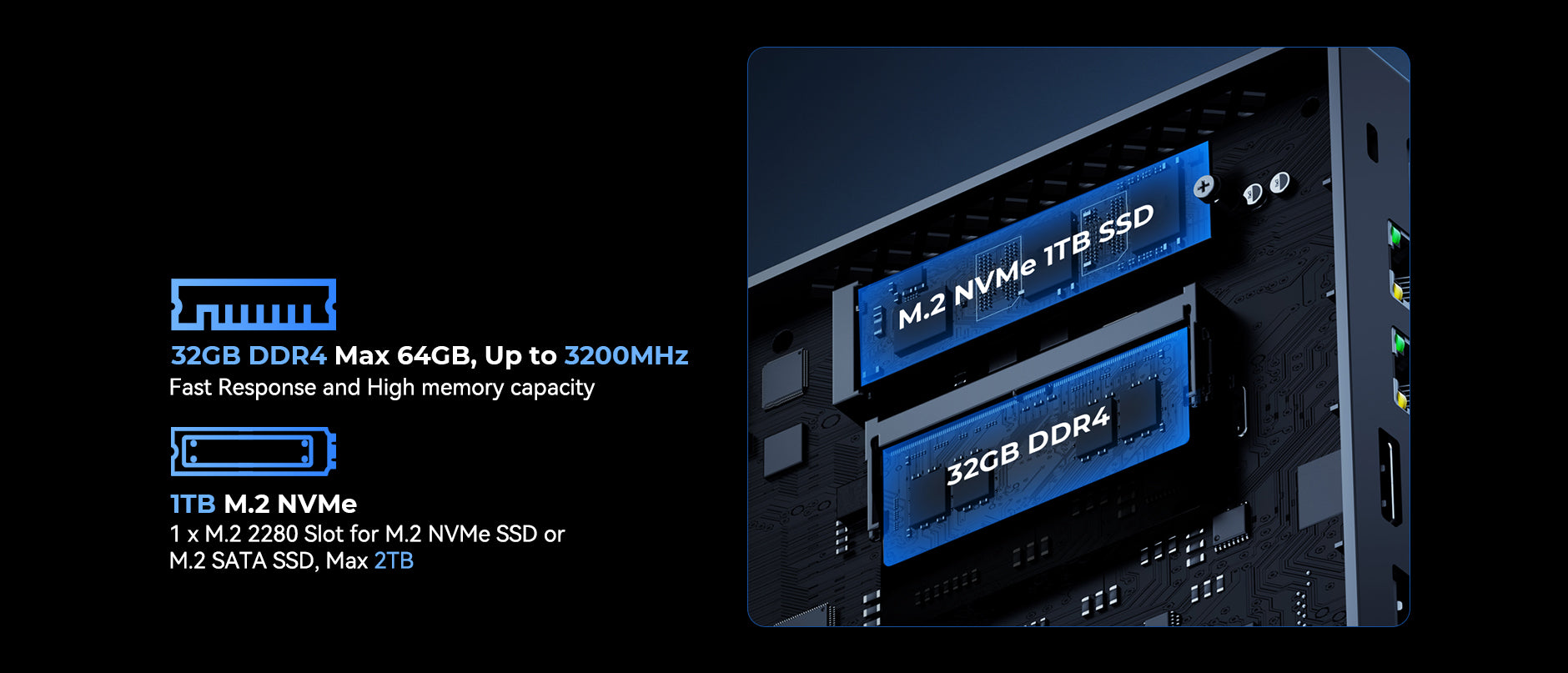

RAM DDR4 3200 MHz Dual Channel, DDR4 SO-DIMM Slots*2, up to 64GB
Storage Configuration M.2 2280 SATA SSD, M.2 2280 Slot*1 (NVMe/SATA) adaptive, up to 2TB, SATA Slot*1 for 2.5'' SSD, up to 2TB
Wireless Connectivity WiFi 6, BT 5.2
Video Output HDMI 2.0*1 (4K@60Hz)
USB 3.2 Gen 2 Type-C*1 (4K@60Hz)
DP 1.4*1 (4K@60Hz)
Audio Output HDMI 2.0*1
USB 3.2 Gen 2 Type-C*1
DP 1.4*1
3.5mm Audio Jack*1
Ports & Buttons 10 M/100 M/1000 M/2.5 Gbps adaptive RJ45 Gigabit Ethernet*1
1.0 Gbps RJ45 Gigabit Ethernet*1
USB 3.2 Gen 2 Type-A*2
USB 2.0 Type-A*2
USB 3.2 Gen 2 Type-C*1 (supports DP 1.4, 4K@60Hz)
Type-C Input Port*1
HDMI 2.0*1 (4K@60Hz)
DP 1.4*1 (4K@60Hz)
3.5mm Audio Jack*1
Power Button*1
Power 19V/3.42A, Type-C connection
System Windows 11 Pro
Dimensions 50*132*132mm
FAQ

Is there an operating system pre-installed on the AM06pro?

Except for the Barebone configurator, all other configurations come with the Windows 11 system pre-installed.

How to fix the issue if the AM06PRO does not boot or turn on?

View YouTube Tutorial

How to replace the RAM and M.2 SSD in the AM06 Pro?

Reference tutorial video

How to install a 2.5-inch SSD in the AM06 Pro?

Reference tutorial video

How to connect three monitors to the AM06 Pro?

Reference tutorial video

How to install the wall mount for the AM06 Pro?

Reference tutorial video

BIOS Support for AM06 Pro

1. Real-time clock, scheduled start
2. Supports automatic start after power on

How to set up the AM06 Pro to automatically start during boot?

Reference tutorial video
