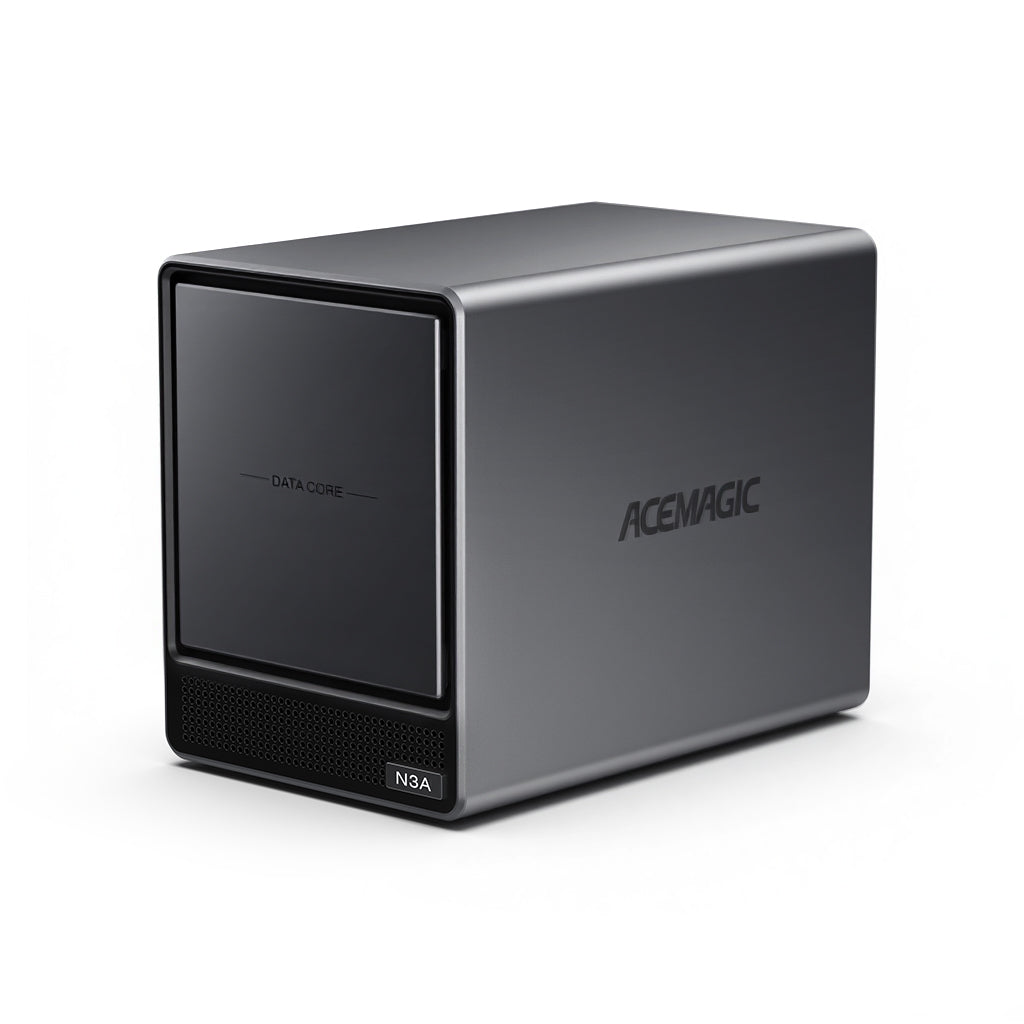

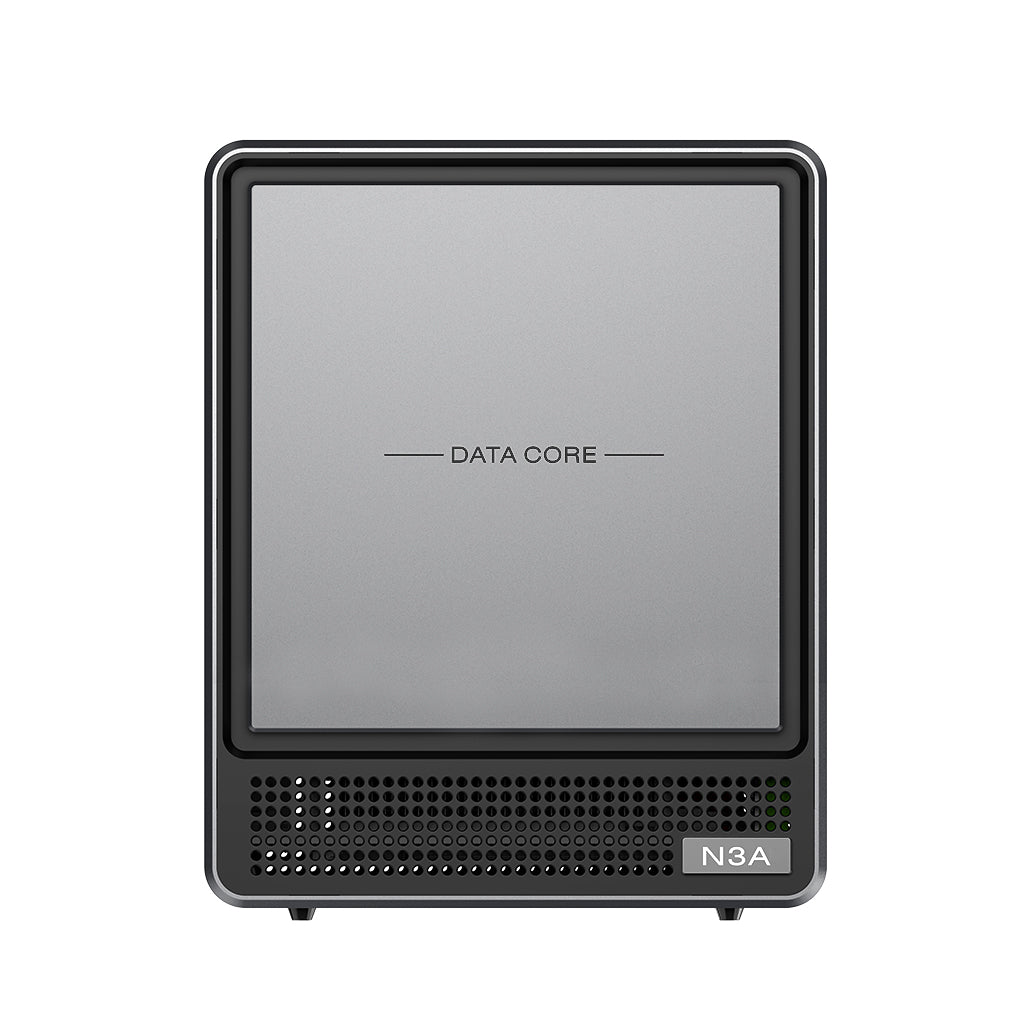

ACEMAGIC N3A NAS AMD Ryzen™ Embedded R2544 Mini PC

ACEMAGIC N3A NAS AMD Ryzen™ Embedded R2544 Mini PC

299,00 €; ~~499,00 €~~; 299,00 €
Unit price: per

Please hurry! Only 1 left in stock

AMD Ryzen™ Embedded R2544, 4 Cores, 4MB L3 cache
Dual-channel DDR4 SO-DIMM ×2 slots，Supports up to 3200 MT/s

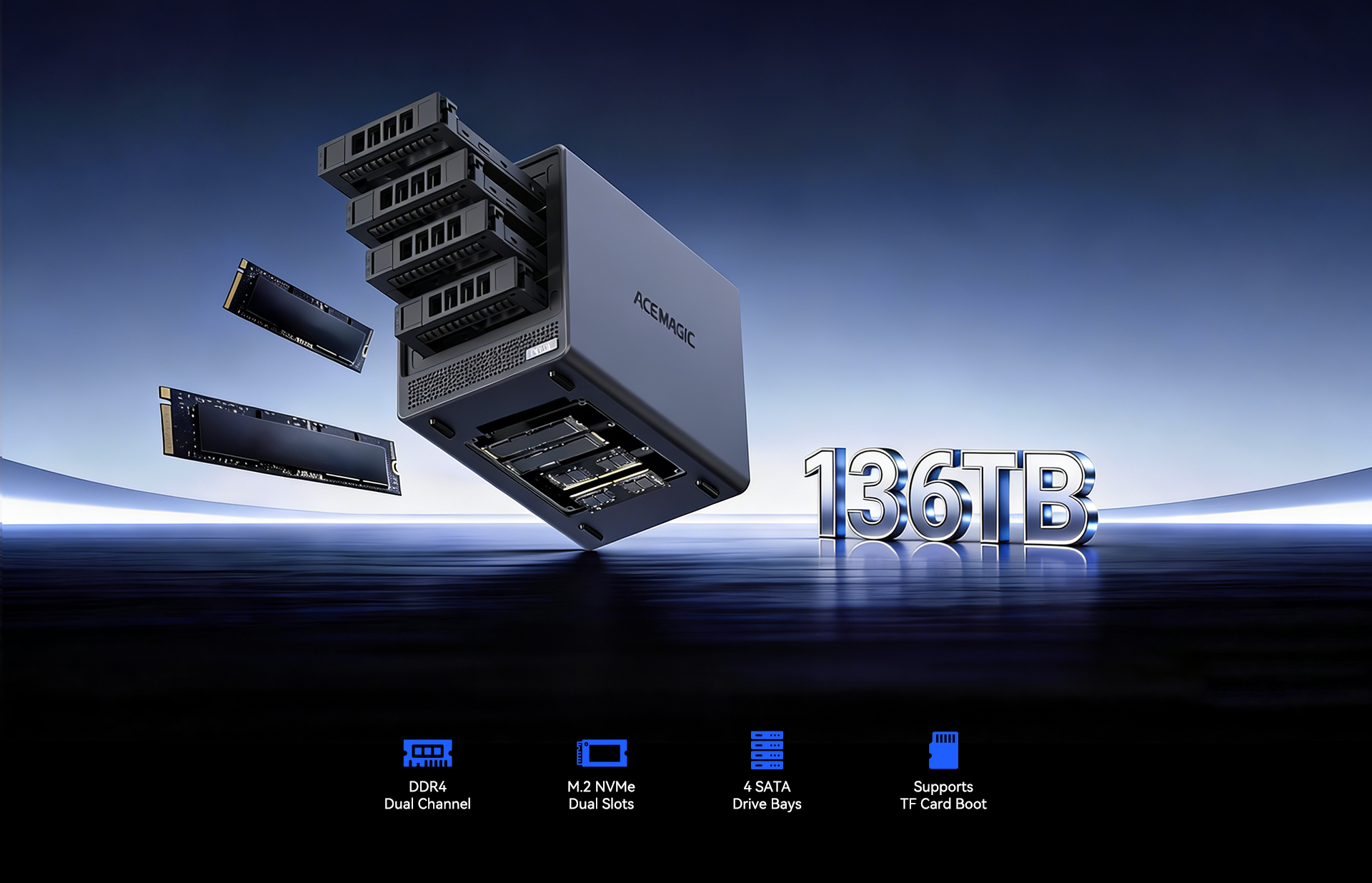

Total storage support up to 4TB*2
Dual M.2 NVMe PCIe 3.0 ×4 (2280) slots
Supports UEFI boot (diskless boot supported)
RTC (Real-Time Clock) with scheduled power-on support.

CPU: AMD Ryzen™ Embedded R2544（Presale） AMD Ryzen™ Embedded R2544（Presale）

TYPE: Barebones (No RAM and SSD) Barebones (No RAM and SSD)

Product variants

Pre-sale

We’ve launched this pre-order program due to high demand for this product. Orders will be fulfilled in batches based on purchase sequence. All pre-orders placed by April 28 are scheduled for shipment. Early orders will receive priority fulfillment and enjoy more favorable pricing.

Subtotal: 299,00 €

Quantity:

Shipping Guarantee

Shipped from warehouse in Germany

Free standard shipping within Europe

Shipping Policy

Warranty

30-Day Hassle-Free Return Policy

2-Year Warranty

Lifetime Technical Support

Warranty Policy

ACEMAGIC N3A NAS AMD Ryzen™ Embedded R2544 Mini PC

~~499,00 €~~ 299,00 €

Choose Options

Quantity:

ACEMAGIC N3A NAS AMD Ryzen™ Embedded R2544 Mini PC

~~499,00 €~~ 299,00 €

CPU: AMD Ryzen™ Embedded R2544（Presale） AMD Ryzen™ Embedded R2544（Presale）

TYPE: Barebones (No RAM and SSD) Barebones (No RAM and SSD)

Product variants

Description
Specification

Description

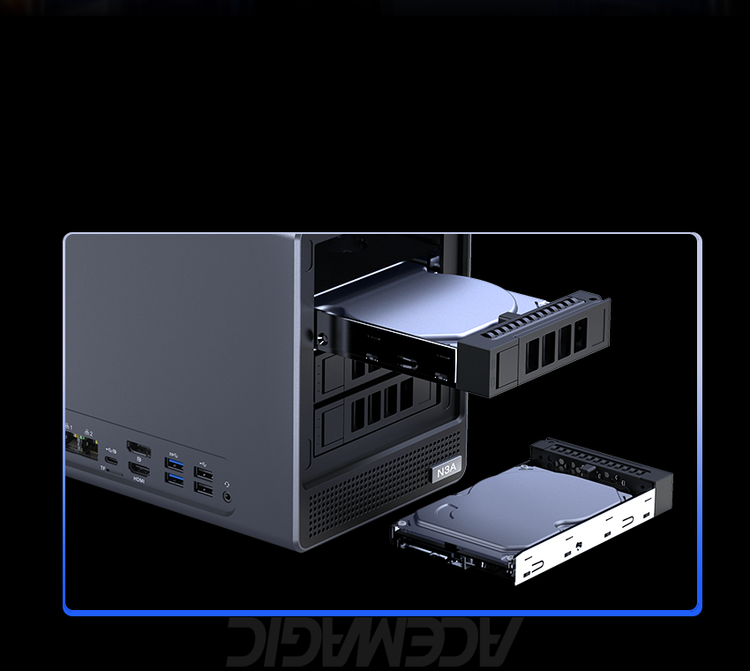

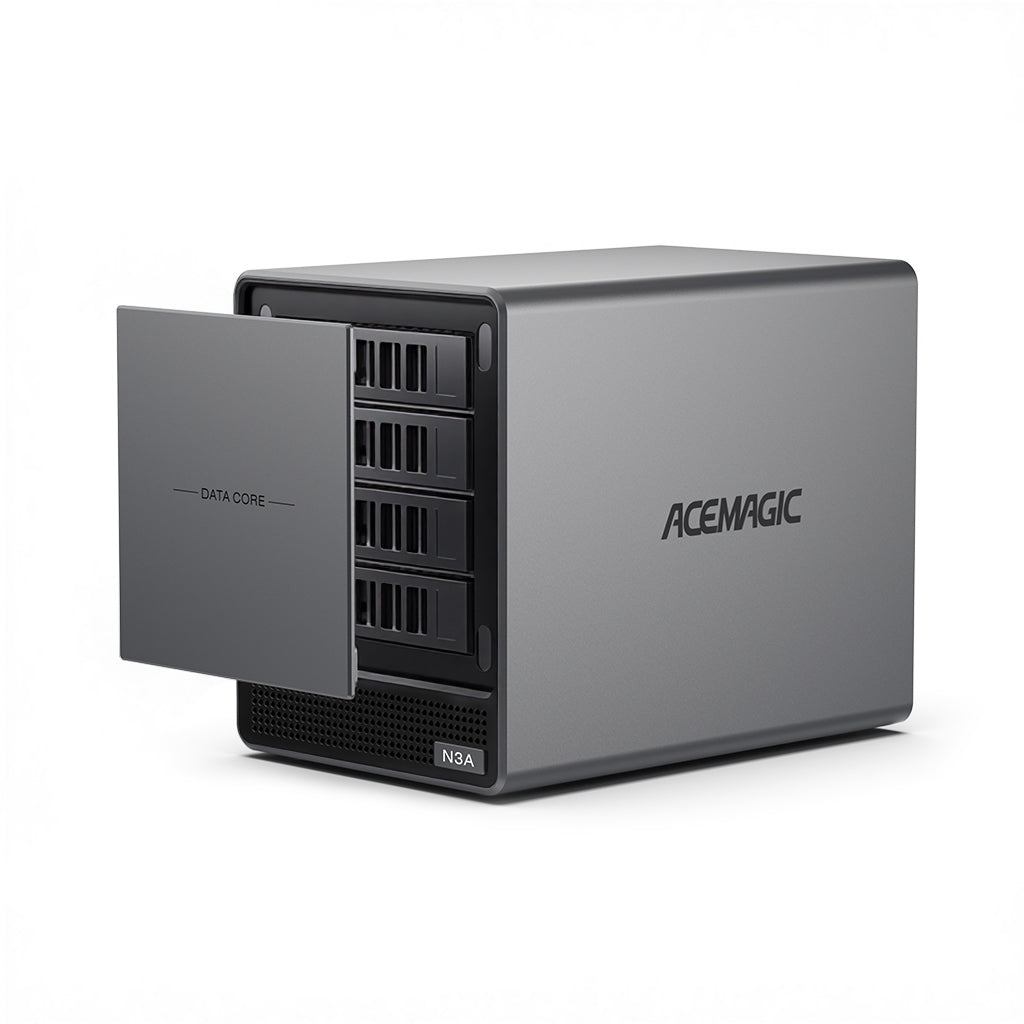

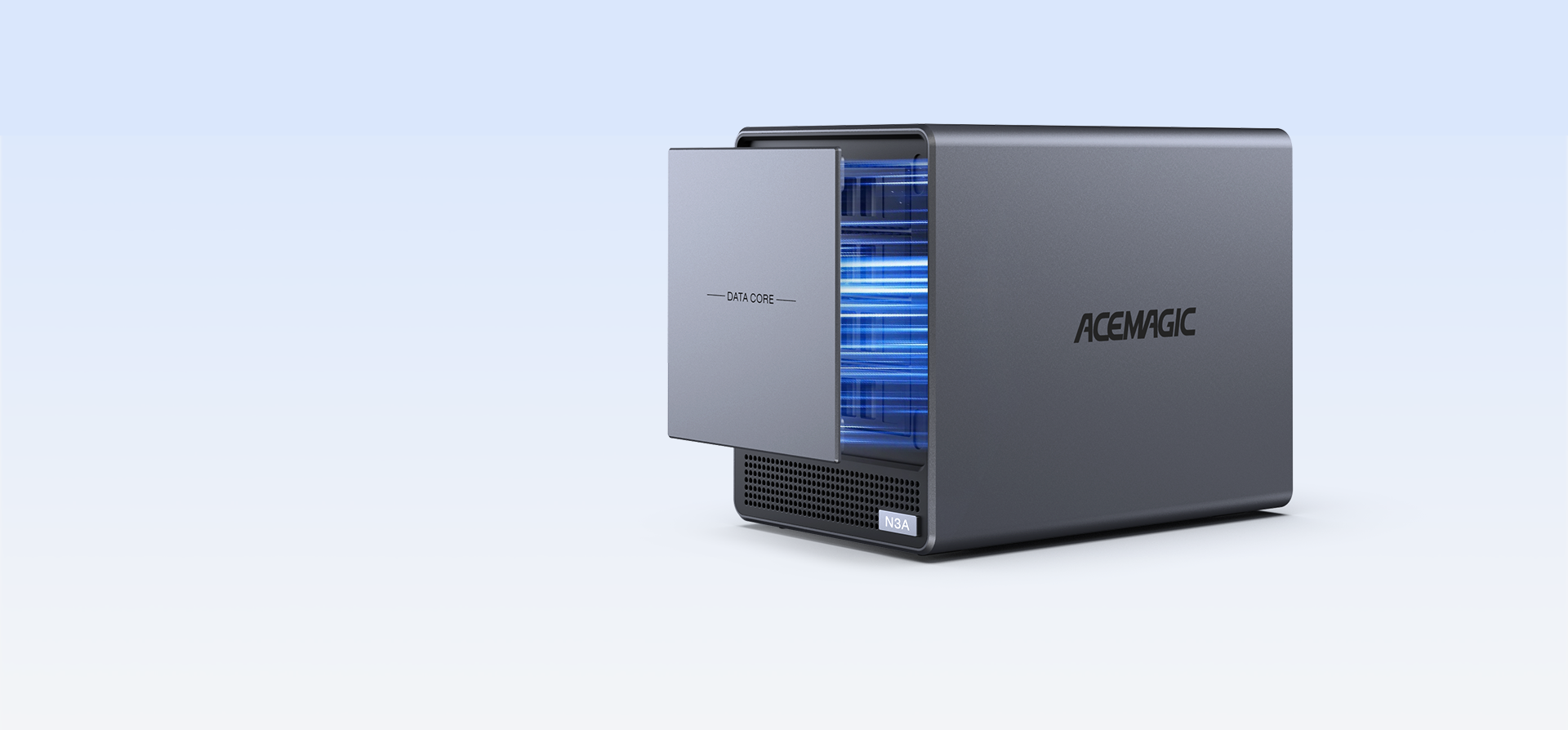

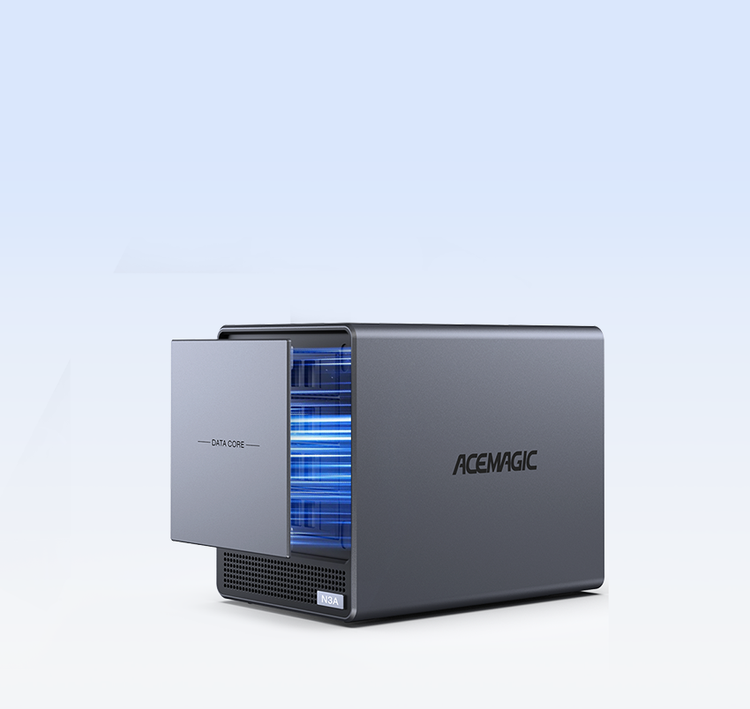

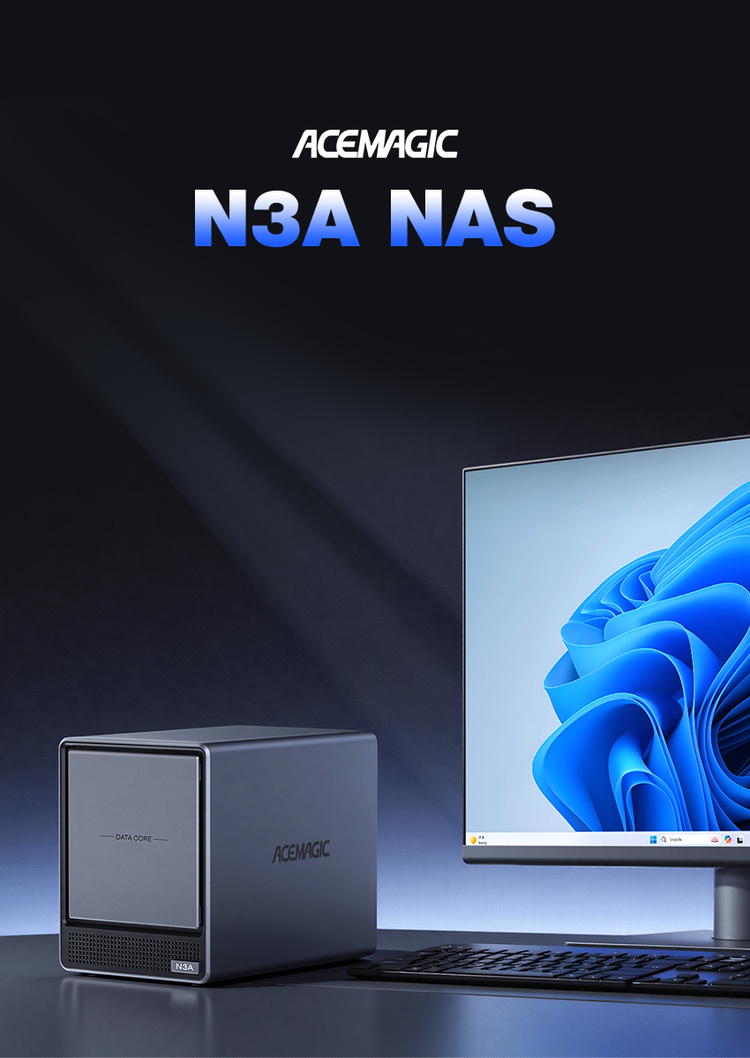

ACEMAGIC N3A NAS Mini PC is a powerful and flexible system powered by the AMD Ryzen™ Embedded R2544 processor, designed for reliable performance in storage and multitasking scenarios. It supports dual-channel DDR4 SO-DIMM memory (up to 64GB, 3200 MT/s) and offers versatile storage options with dual M.2 NVMe PCIe 3.0 ×4 slots and a SATA 3.0 interface, with total capacity expandable up to 8TB depending on configuration. It also features practical functions such as RTC scheduled power-on and automatic power-on when power is restored.

Specification

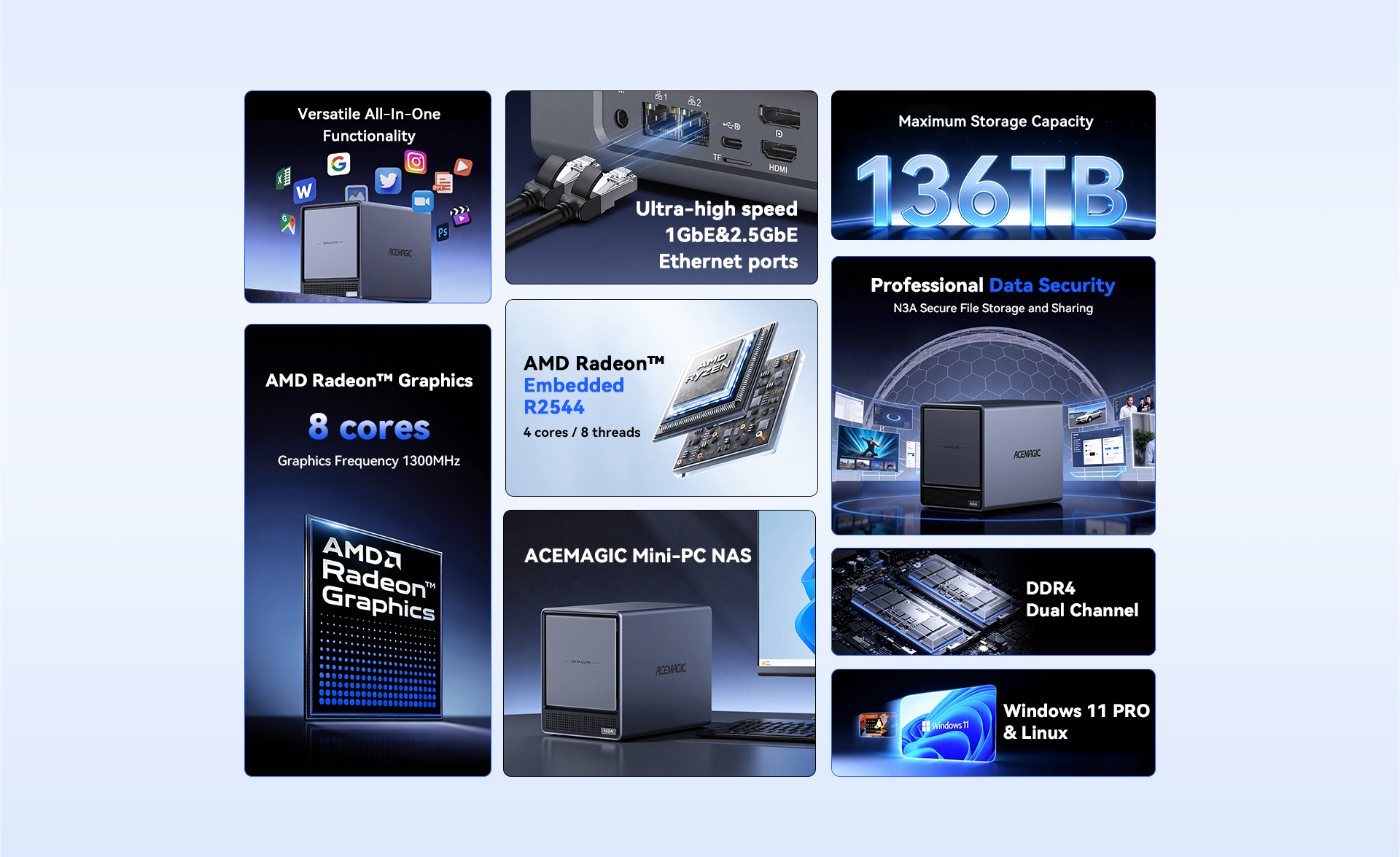

Processor	AMD Ryzen™ Embedded R2544 Processor, 4 Cores / 8 Threads, 4MB Intel® Smart Cache, Base Frequency: 3.35 GHz, Turbo Frequency up to 3.7 GHz
Graphics Card	AMD Radeon™ Graphics Processors (Maximum Dynamic Frequency: 1.3 GHz, Compute Units: 8 CUs)
RAM	Up to 64 GB, 2 × DDR4 SO-DIMM slots, 1600 MHz
Storage Configuration	Expandable storage with 2 × M.2 NVMe PCIe 3.0 ×4,up to 2 × 4 TB

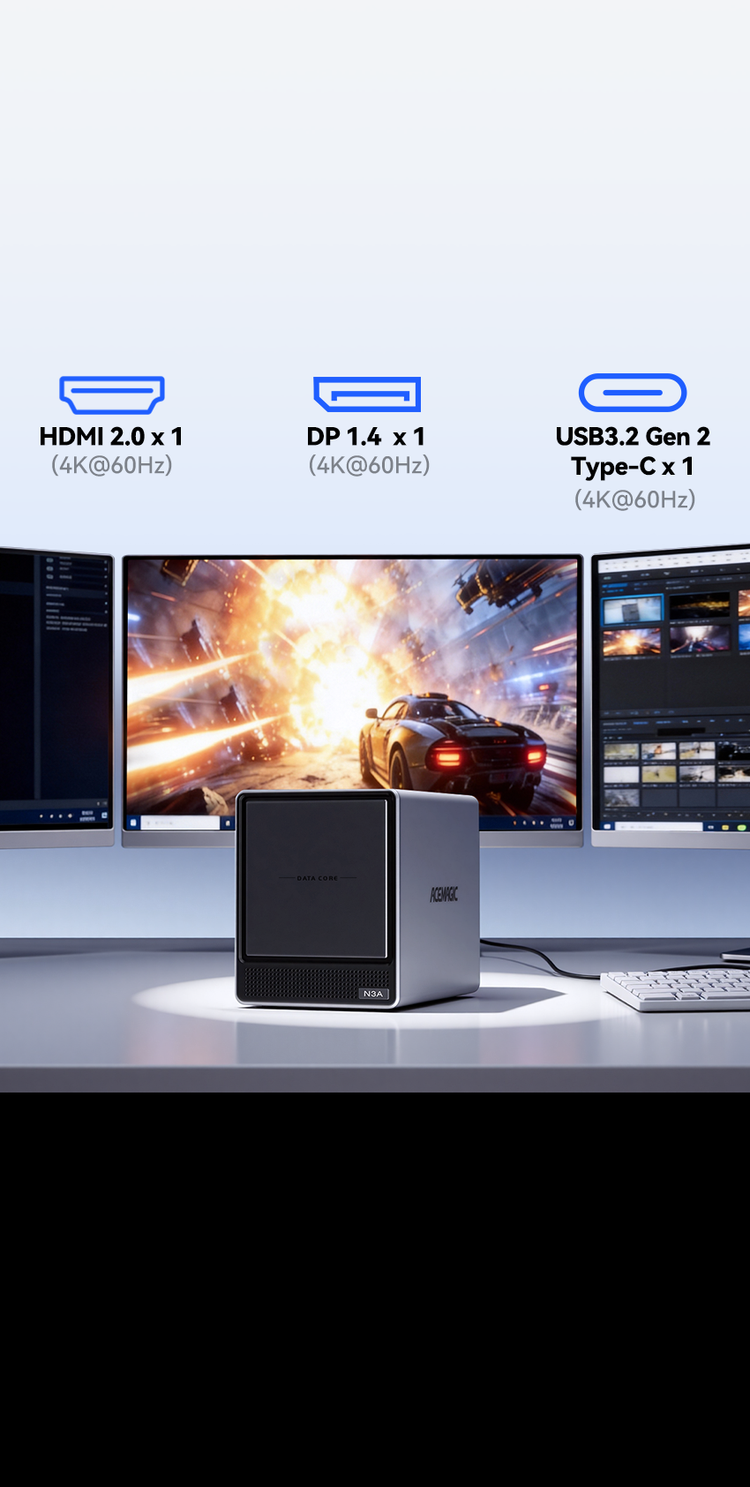

Video Output	HDMI 2.0 1 Max：40962160@60Hz USB3.2 Gen2 Type-C ×1 (10Gbps data transfer, DP 1.4 [4K@60Hz]) DP 1.4 1 Max：40962160@60Hz
Audio Output	HDMI 2.0 1 Max：40962160@60Hz USB 3.2 Gen2 Type-C ×1 DP 1.4 1 Max：40962160@60Hz 3.5mm Audio Jack ×1

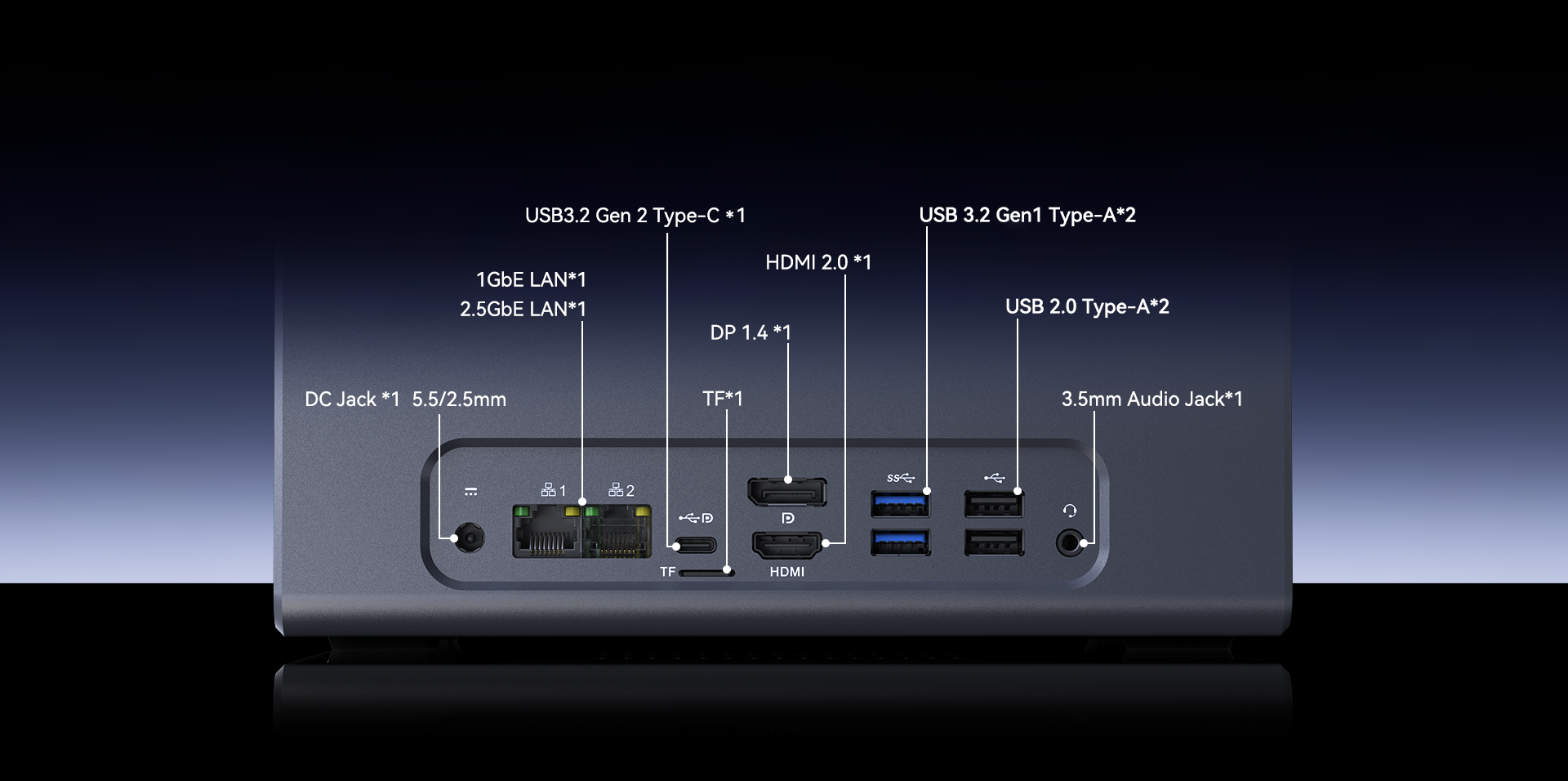

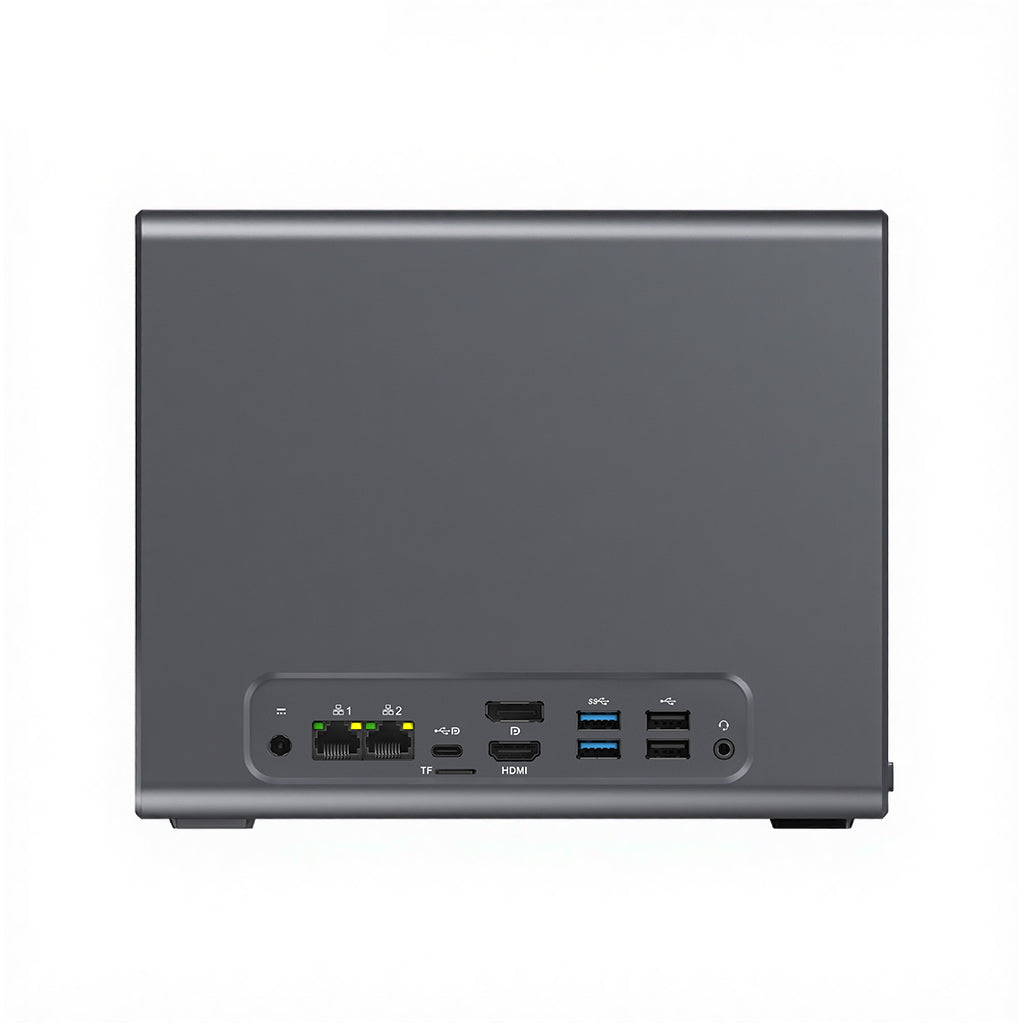

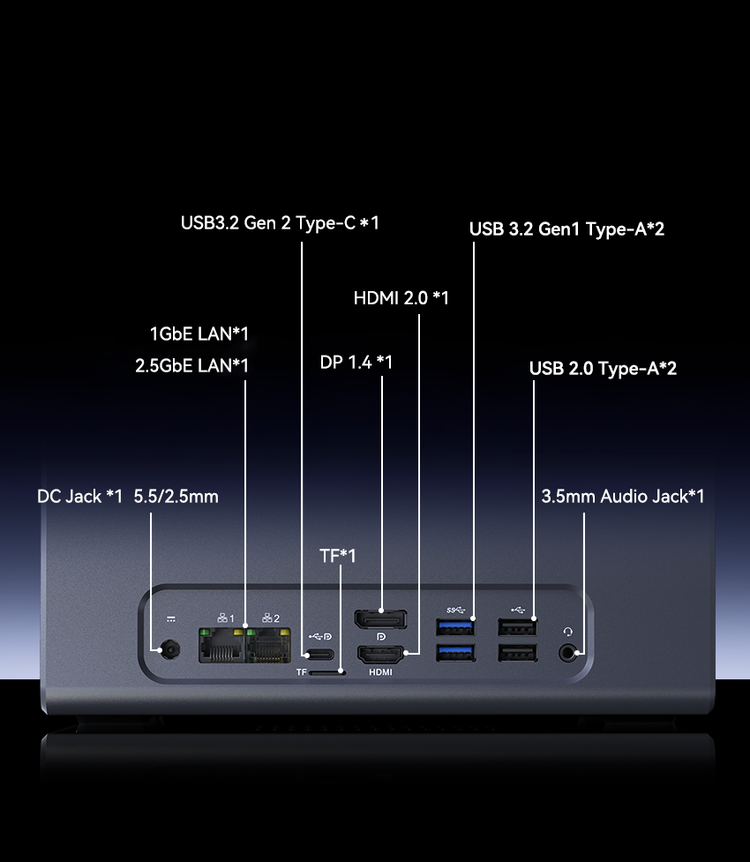

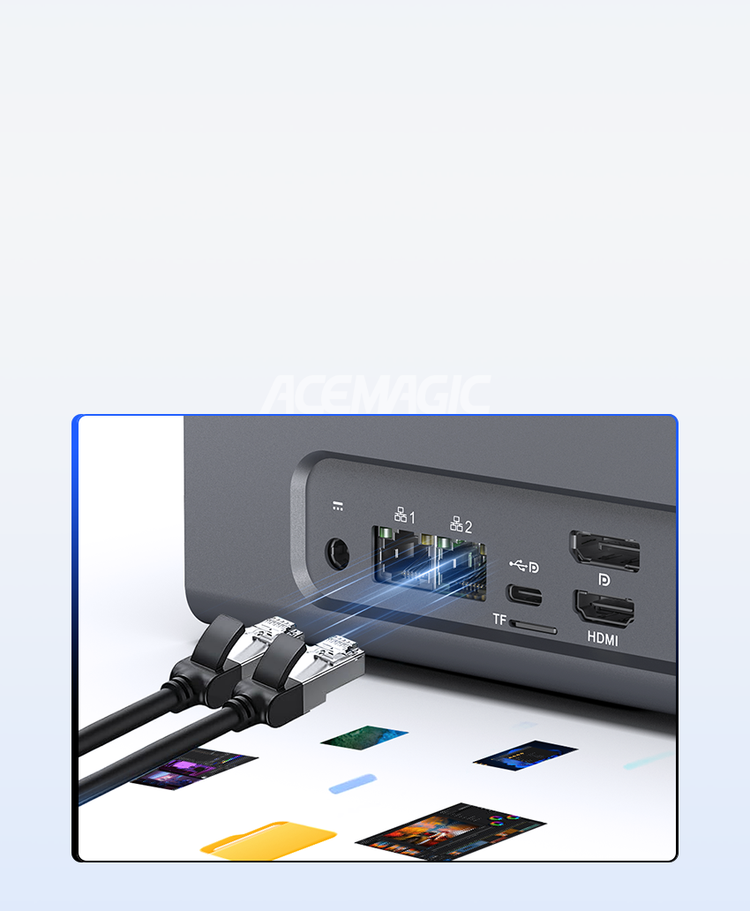

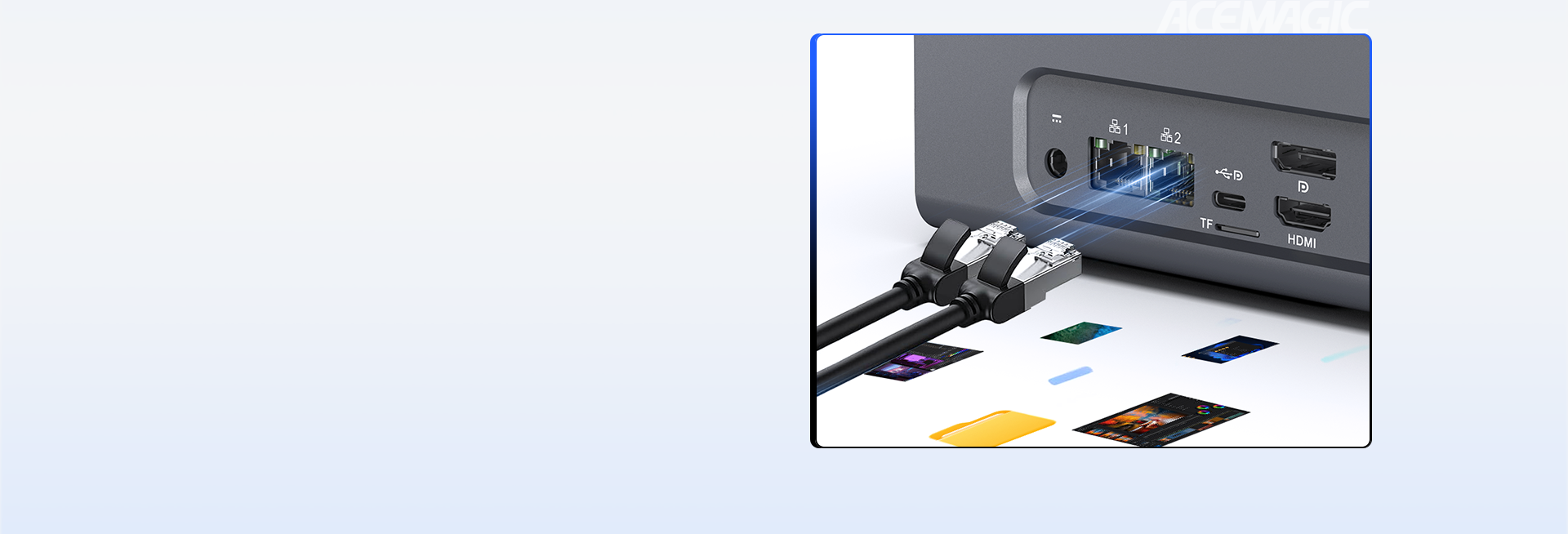

Ports & Buttons	10/100/1000Mbps Adaptive RJ45 Gigabit Ethernet ×1 10/100/1000/2.5Gbps Adaptive RJ45 Gigabit Ethernet ×1 USB 3.2 Gen1 Type-A ×2 (5Gbps) USB 2.0 Type-A ×2 USB 3.2 Gen2 Type-C ×1 (max 10Gbps data transfer, DP 1.4 [4K@60Hz]) DC IN ×1 HDMI 2.0 1 Max：40962160@60Hz DP 1.4 1 Max：40962160@60Hz 3.5mm Audio Jack ×1 Power Button ×1
Power	DC 19V/6.3A, 5.5×2.5mm DC Connector
System	Windows 11 Pro/Linux

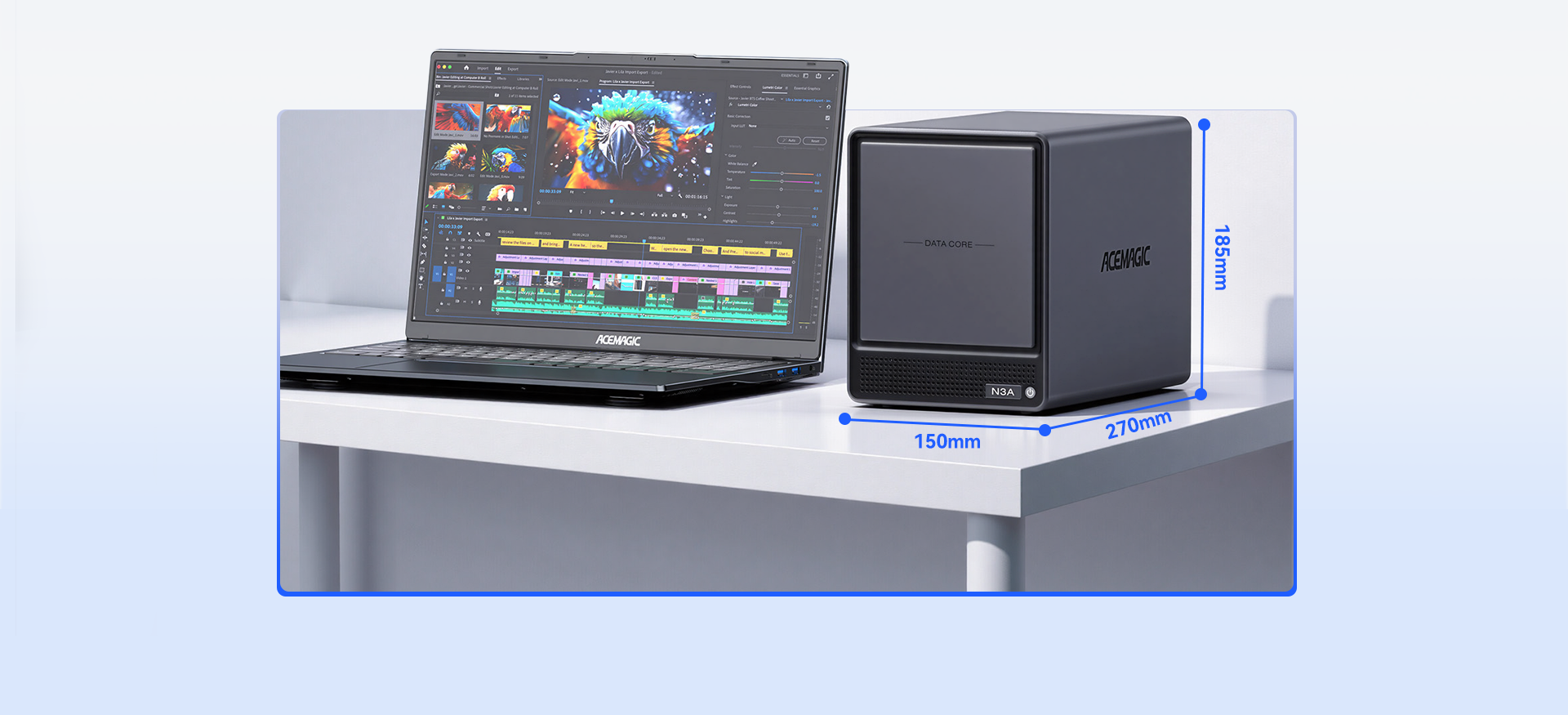

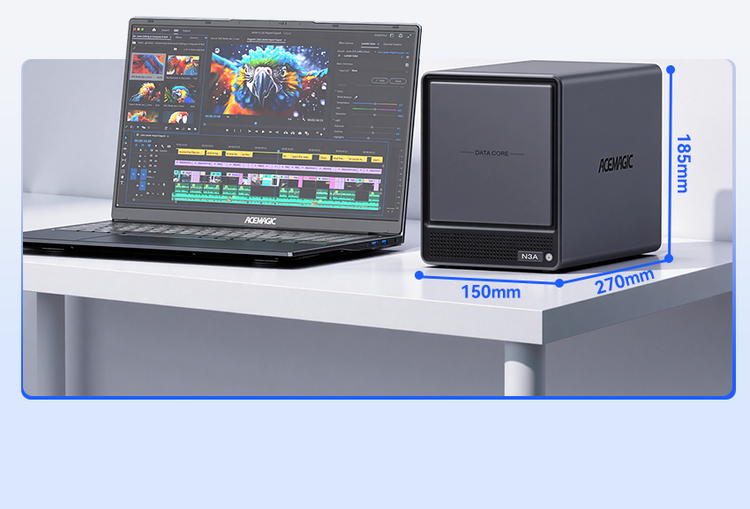

Dimensions	270 × 150 × 185 mm
